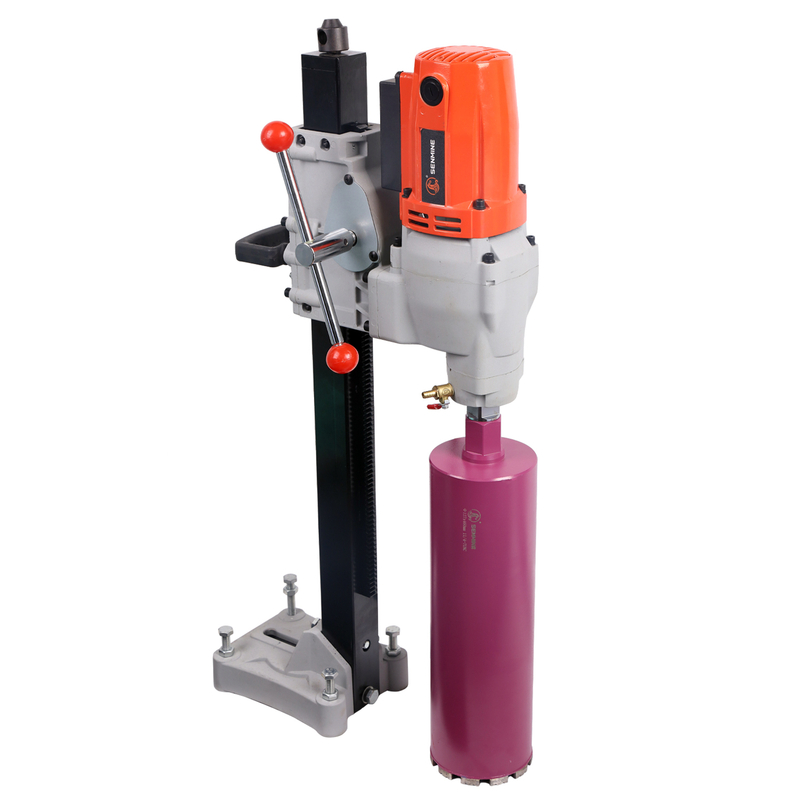

Heavy Duty Concrete Drilling Diamond Core Drill Machine

Concrete driller is a kind of efficient and precise drilling equipment,which is widely used in construction,decoration,industry and other field. Electric core drill mainly cuts concrete, stone, tiles and other materials through the diamond particles on the drill bit, thus realizing precise hole cutting. Core drill is named for its working principle, tie. cooing the drill bit by water during the drilling process,which reduces friction and head generation,thus prolonging the service life of the drill bit and effectively reducing dust and noise solution.Core drilling machine are smooth cutting surface, non-destructive structure, high drilling accuracy,especially suitable for the construction of critical parts such as,floors and Ceramic tile.
  • 305
  • Senmine
Categories:

07 1

Key Features & Benefits

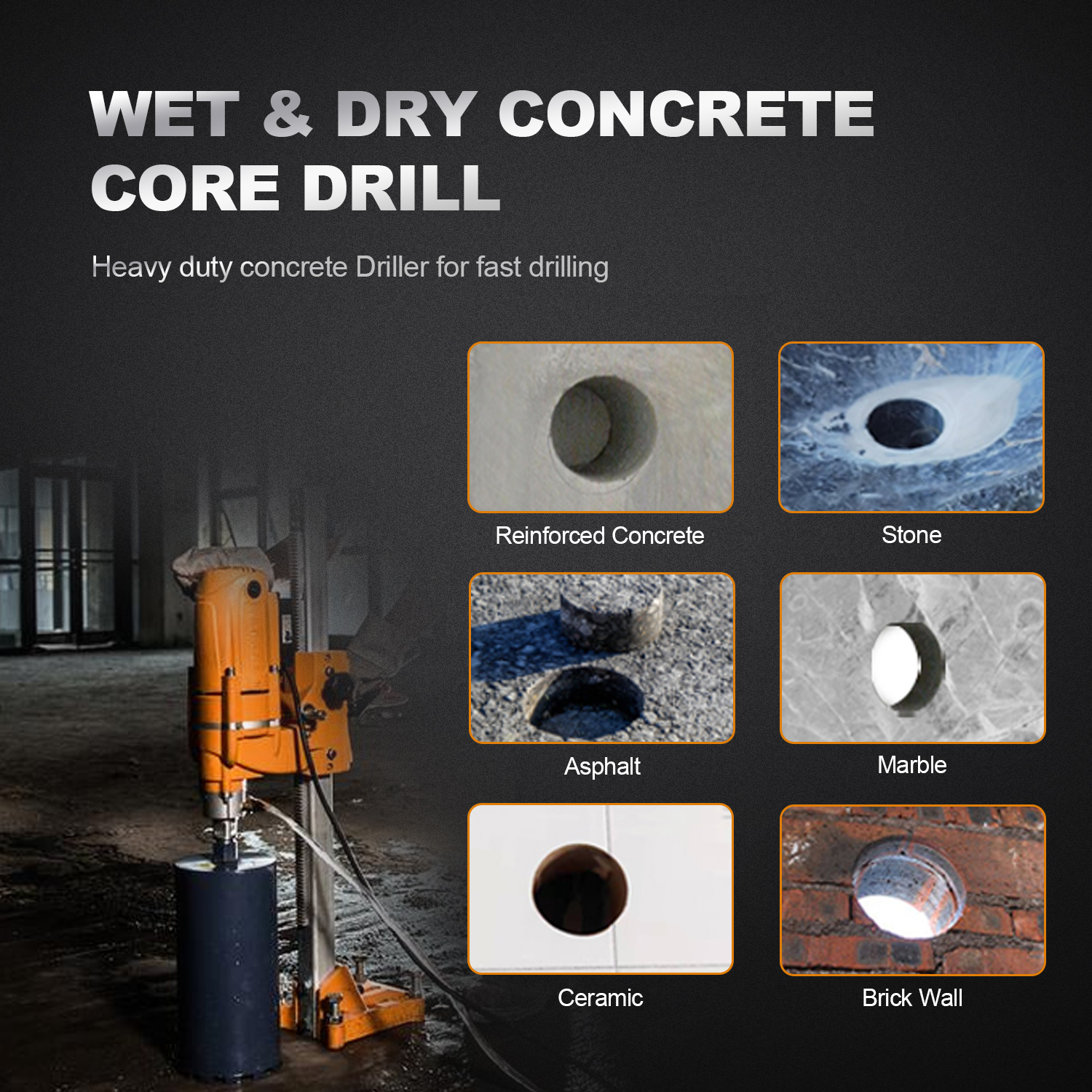

•Precision wet core drilling for concrete, masonry, granite, marble and ceramic tile; smooth bore and high dimensional accuracy.

•Water-cooled operation reduces friction, heat and dust, extending tool and bit life and improving job-site hygiene.

•Low vibration, low noise design protects structural integrity and operator comfort.

•Handheld or rig-mounted configurations; vacuum base or anchor stand options for vertical, horizontal, and overhead drilling.

•Wide bit interface options (e.g., 1-1/4″-7, 5/8″-11) to match your diamond core bits.

•OEM/ODM customization for power rating, speed stages, voltage, plug type, water feed, and packaging.

Applications

•Construction & renovation: HVAC openings, pipe sleeves, conduit paths, anchor and railing holes.

•Finishing & interiors: Tile and stone countertop bores, sanitary ware penetrations.

•Industrial & MEP: Cable trays, fire protection lines, core samples for testing.

How It Works

Diamond core bits grind (not chisel) through hard aggregates. A constant water feed cools the bit and carries away fines, maintaining diamond exposure and preventing glazing. This approach enables precise, low-damage holes in structural members and delicate finishes alike.

Usage & Safety Tips

•Use a stand or vacuum base for diameters >67 mm or when positional accuracy is critical.

•Mark services and rebar before drilling; adjust feed when encountering reinforcement.

•Maintain steady water flow; for slower cutting, briefly reduce water to re-expose diamonds, then resume normal flow.

•Always wear eye/ear protection and manage slurry responsibly.

OEM Options

•Power and speed configurations for regional substrates.

•Custom threads/adapters, water connections, and stands.

•Private label, artwork, and cartons for distributors.

03 04 05 1 6 3

FAQs

• Can it drill reinforced concrete?
Yes. Use a quality diamond core bit and steady feed; wet drilling helps control heat and keeps diamonds exposed.

• Handheld or rig-mounted—how should I choose?
Handheld is fine for small diameters and thin sections. For larger holes, depth, or tight tolerances, use a rig with anchor or vacuum base.

• What bit thread do I need?
We supply common interfaces (1-1/4″-7, 5/8″-11) and custom adapters. Tell us your existing bit spec and we’ll match it.

• Can I drill tile without cracking it?
Yes—start with low pressure and correct alignment, maintain coolant, and avoid side-loading. For brittle ceramics/porcelain, use a fine-grit bit.

• How do I keep productivity high on abrasive or hard aggregates?
Match bond hardness to the substrate and keep a consistent water feed; re-dress if cutting slows, then resume normal cooling.
