Diamond tools don't "perform" because the grit is diamond—they perform because the diamonds are held, exposed, and released in a controlled way. That control system is the bond type (bonding method): the matrix or process that fixes diamond particles to the tool body. Change the bond, and you change how aggressively the tool cuts, how it handles heat and swarf, whether it self-sharpens, how often it needs dressing/truing, and what kind of surface finish you can realistically hit.
This guide breaks down the five most common diamond bond types—resin bond, metal/sintered bond, vitrified bond, electroplated (nickel bond), and vacuum brazed—then shows you how to choose a bond based on your material, job conditions (wet/dry, heat limits, chip clearance), and production targets (speed vs finish vs cost per part).
Don't Confuse Bond with Grit or Concentration
In diamond tools, bond is not grit size, not diamond concentration, and not "grade" in the way many buyers casually use it. Bond is the retention system that holds diamond crystals in place while they cut—then (in many bonds) gradually releases worn crystals so fresh cutting points can take over. That's why two wheels with the same grit size can behave completely differently: one may cut cool and leave a clean finish, while the other may run hot, glaze, or cut slowly until it's dressed.
A practical way to think about bond is: how easily does the tool expose new diamond edges over time? Some bonds "self-sharpen" by releasing dull grains more readily; others hold diamonds much longer for durability and profile retention. And some systems (like electroplating) don't really "renew" at all—once the single layer is worn, performance drops off and the tool is effectively done or needs re-plating.
30-Second Summary
If you only remember four rules, remember these:
• Need best surface finish / controlled cutting feel? Start with resin bond (and in precision grinding, consider vitrified bond). Resin bonds are often described as "softer," helping natural self-sharpening and smoother results.
• Need long life, strong grit retention, and shape holding under load? Look at metal bond / sintered bond. It's the go-to when durability and profile stability matter.
• Need ultra-sharp, high-precision profiles with minimal downtime? Electroplated (nickel bond) is typically single-layer and commonly marketed as no-dressing during life—you run it until the diamonds wear out.
• Need aggressive cutting/grinding with a strong single-layer bond for jobsite-style work? Vacuum brazed tools are often positioned as more robust than plated, though the "sharpness vs durability" tradeoff depends on design and application.
Core Comparison Table
| Bond type | Structure | Diamond retention | Cutting "feel" | Heat / chip clearance | Dressing / truing | Typical tools | Best-fit use cases |
|---|---|---|---|---|---|---|---|
| Resin bond | Multi-layer matrix | Medium | Smooth, finish-friendly | Often cooler cutting, but can glaze if mismatched | Minimal to periodic | Wheels, pads, some blades | Finish-first grinding/polishing, controlled removal |
| Metal / Sintered bond | Multi-layer matrix (often denser) | High | Stable, durable | Strong under load; can run hotter if overloaded | More likely needed | Segments, wheels, bits | Heavy removal, long life, profile holding |
| Vitrified bond | Porous ceramic/glass matrix | Medium–high | Free-cutting + controllable | Porosity helps coolant/swarf paths | Truing + dressing are key in precision | High-precision wheels | Precision grinding where consistency matters |
| Electroplated (Nickel bond) | Single-layer | High (until worn) | Very sharp from start | Good chip space due to protrusion | Typically no dressing | Profile wheels, burrs, files | High-precision profiles, low downtime |
| Vacuum brazed | Single-layer (brazed) | High | Aggressive, "bites" | Often good exposure/cooling | Usually no dressing | Cup wheels, blades, hole saws | Jobsite grinding/cutting, fast stock removal |
Note: "Best-fit" always depends on material + machine rigidity + cooling + target finish. Use the selection sections below to lock it in.
Better Finish and Smooth Cutting, If the Job Conditions Match

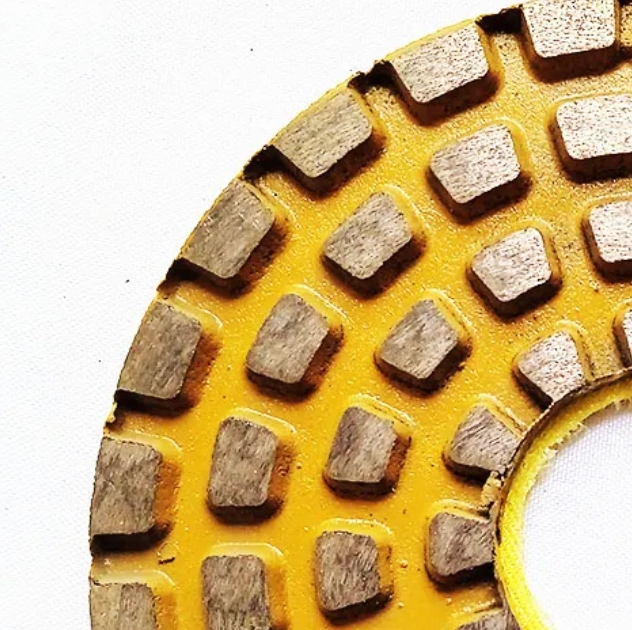

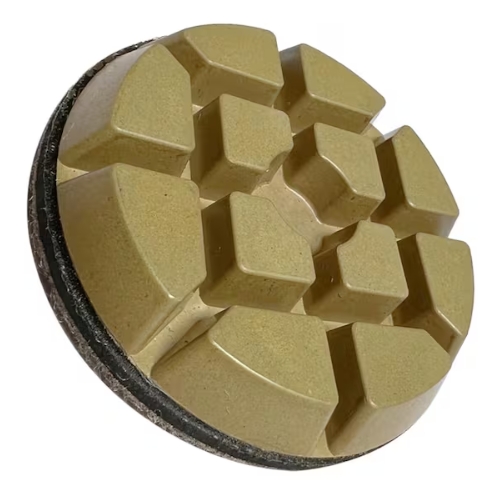

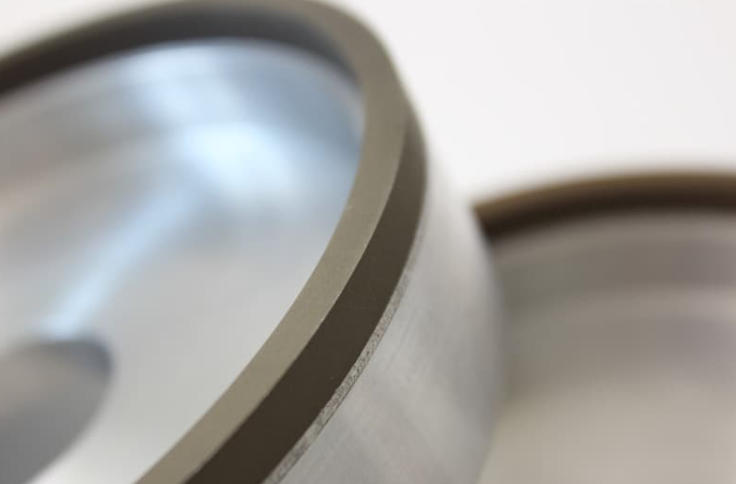

Resin bond diamond tools
Resin bond diamond tools use an organic/resin matrix to hold diamond particles. In many grinding and polishing applications, that matrix is intentionally "forgiving": it can release worn diamond grains and expose fresh ones, which supports a consistent cutting action and a cleaner finish. In practical terms, resin bond is common in diamond grinding wheels where finish quality matters, and in many resin bond polishing pads used to step from mid-grit to fine finishing.
For buyers, resin bond is also easy to misunderstand: if you judge only by initial sharpness, it can look "fast and perfect," then later you see glazing or heat issues and assume the wheel is defective. Usually it's a mismatch: wrong bond hardness for the material, wrong pressure, wrong speed, or insufficient cooling. When resin bond is matched well, it's one of the best ways to achieve a controlled cut with predictable surface quality—especially when you care about edge integrity and low subsurface damage.
A common description for resin bond is self-sharpening: as the wheel works, dull grains can be released and new sharp edges are exposed with less intervention. That's a major reason resin-bonded wheels are often linked to good surface finish and lower grinding heat in many setups.
But the tradeoff is real: if the bond is too soft for a highly abrasive job, you may see shorter life. If the bond is too hard for a hard material, the diamonds can dull while the matrix refuses to release them—so the tool "skates," runs hot, and cuts slower until you dress it or change the spec. This is exactly why "resin bond vs metal bond" comparisons usually end with: resin is often chosen for finish and controllability; metal is chosen for retention and durability.
Symptom: glazing / shiny wheel face / cutting slows down
• Likely cause: bond too hard for the material or parameters too light
• Fix: increase chip load slightly (within safe limits), adjust coolant, or switch to a softer bond / more open structure
Symptom: burns / heat checks / discoloration
• Likely cause: heat not leaving the cut (speed/pressure mismatch, poor coolant)
• Fix: improve coolant delivery and chip evacuation; revisit speed/feed
Strong Grit Retention, Long Life, Profile Holding—But Needs the Right Setup
Sintered diamond core bit
In industry language, metal bond generally means a metallic matrix holding diamonds; sintered often refers to how that matrix (or segments) is consolidated in manufacturing. In buying terms, both point you toward a high-retention system designed for durability, stable profiles, and heavy-duty removal.
For heavy removal where tool life and geometry retention dominate cost-per-hole/cut, sintered diamond core bits and segmented diamond blades are typically the most forgiving starting point—especially when the job involves abrasive aggregates and long production cycles.
This matters because many customers ask only about diamond grit size and then complain the tool is "slow." In metal- and sintered-bond tools, cutting speed is often a function of chip load, machine rigidity, coolant delivery, and dressing strategy—not grit alone. If the machine is underpowered or lacks stiffness, a very durable bond may not break in properly; the diamond tool can seem to polish rather than cut until the parameters are corrected.
Metal bond tools are typically chosen when you need the diamonds to stay put longer, resist wear, and maintain geometry—especially in continuous production where profile accuracy and tool life drive cost per part. Because the bond holds longer, you may need to manage loading and dulling more proactively (dressing, parameter tuning).
Symptom: tool lasts long but cuts slowly
• Cause: diamonds are dull but retained (bond too hard / chip load too low)
• Fix: dressing strategy + parameter tuning, or adjust bond hardness/spec
Controlled Porosity, High Consistency, and Precision—With Dressing/Truing

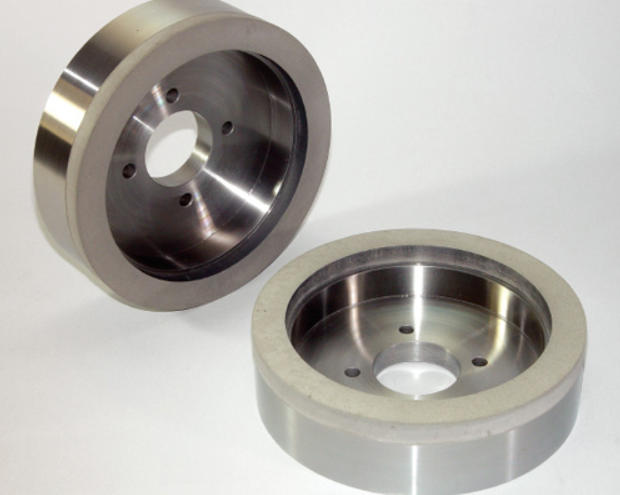

Vitrified bond wheels
Vitrified bond wheels use a ceramic/glass-like matrix and are often engineered with controlled porosity. That porosity isn't cosmetic—it's functional: it can create channels for coolant and chip clearance and support a more consistent grinding behavior when the system is tuned correctly.
Where vitrified really shines is repeatability: shops that need stable geometry, consistent removal, and predictable maintenance cycles often prefer a bond system where the wheel can be trued and dressed in a controlled way. That maintenance is not a downside—it's part of the system design. If you don't plan for truing/dressing capability, vitrified may feel "high maintenance." If you do, it can be one of the most controllable paths to stable output.
A clean mental model:
• Truing restores wheel geometry (roundness, profile)
• Dressing restores cutting action by exposing fresh abrasive edges and clearing bond material
In practice, truing often comes first, and dressing follows to make the wheel cut again.
Single-Layer, High Profile Accuracy, Typically No Dressing

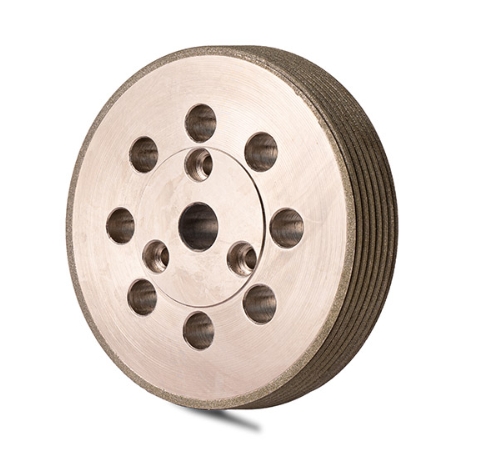

Electroplated (nickel bond) diamond tools
Electroplated (nickel bond) diamond tools typically hold a single layer of diamonds in a nickel alloy plating. The selling point is straightforward: high diamond protrusion, sharp cutting points, and excellent profile fidelity because the abrasive layer is thin and conforms closely to the core geometry.
Multiple industry sources describe plated wheels as designed to run without dressing during their working life—you grind/cut until the diamond particles are worn out. That can eliminate downtime and simplify process planning, which is why electroplated is popular for precision profiles, burrs/files, and applications where you want immediate cutting without a break-in phase.
A plated tool doesn't gradually renew the way multi-layer bonds do. When the diamond layer is consumed, performance drops sharply. That can be a feature (predictable replacement intervals) as long as you budget spares and track wear.
A Single-Layer System Built for Stronger Bonding and Aggressive Cutting

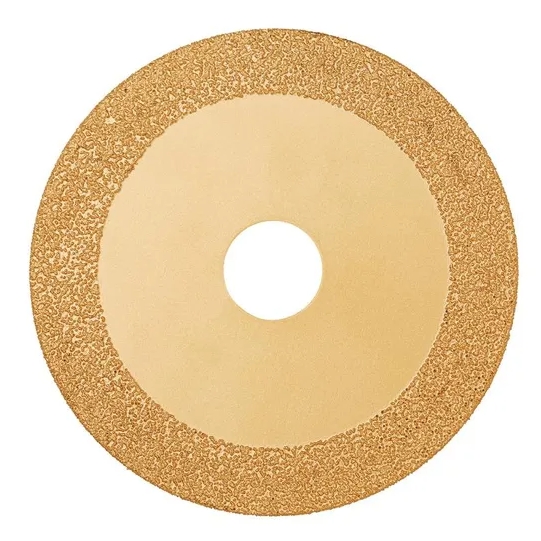

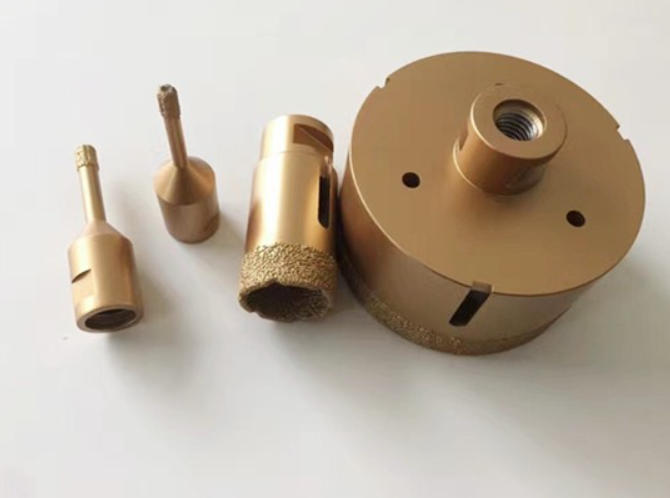

Vacuum brazed diamond tools
Vacuum brazed diamond tools bond diamonds to a steel body using brazing alloy under controlled heating. Like electroplating, brazing is often discussed as a single-layer concept in the sense that diamonds are exposed and not buried in a thick multi-layer matrix.
Electroplating is often associated with very sharp, pointed crystals and high profile precision; vacuum brazing is often positioned as a stronger joint suitable for harsher use, with tool designs commonly seen in cup wheels, blades, and hole saws. One practical comparison article notes that the processes are not interchangeable because the diamond crystal choice and bonding conditions differ, affecting sharpness and robustness.
For jobsite-style grinding—where impact, inconsistent feed, and dust/heat management are everyday realities—vacuum brazed tools are often selected because they can "bite" aggressively and keep working in rougher conditions.
Bond hardness is where many buyers get lost, so keep it simple:
• If your tool glazes (gets shiny) and stops cutting on a hard material, the bond is often too hard—it's holding dull diamonds instead of releasing them.
• If your tool wears too fast on a softer, highly abrasive material, the bond may be too soft—it releases diamonds before you've extracted full value.
This is why many selection guides push a counterintuitive principle: harder workpiece → often needs a softer bond (to refresh cutting edges), while softer/abrasive workpiece → often needs a harder bond (to avoid premature diamond loss).
Bond hardness selection matrix:
| Work condition | What you see | Likely mismatch | Better direction |
|---|---|---|---|
| Very hard material, tool slows & heats | Glazing, burn marks | Bond too hard | Softer bond / more open structure |
| Soft but abrasive material, tool wears fast | Diamonds "disappear" | Bond too soft | Harder bond / higher retention |
| High-speed dry work | Heat build-up | Cooling/chip issue | Adjust parameters + choose bond that runs cooler |
Choose by Application
For cutting, bond choice is usually a three-way trade: speed vs edge quality vs heat/dust control. Plated and brazed products can feel very sharp and fast (single-layer exposure), while multi-layer bonds are often chosen when you need controlled wear and predictable life.
For grinding, consistency and maintenance strategy matter. If you have a stable machine and you control dressing/truing, vitrified and metal bond systems can deliver repeatable geometry and process stability. Dressing and truing aren't optional details here—they are part of how the system maintains performance.
For drilling, the bond must survive heat and abrasion while maintaining chip clearance. Segment-style (metal/sintered) systems often dominate when durability and predictable hole quality are required at scale.
Polishing often uses a bond progression: more aggressive removal first, then smoother finishing later (commonly moving toward resin-based systems for final finish).
If you're unsure which bond to start with, don't overthink grit first—start with the application path: cutting, grinding, drilling/coring, or polishing. Each one rewards a different balance of retention, exposure, and chip evacuation. SENMINE manufactures and supplies diamond tools that map cleanly to these four use cases, so you can compare options without rewriting your whole process. Send your material, tool size, wet/dry method, and what "good" looks like for you (speed, finish, life), and we'll propose a few workable configurations to test.
If You See These Symptoms on Site, It's Usually Bond/Parameter Mismatch
1) Cuts fast at first, then suddenly slow (plated tools)
Likely: single-layer diamonds are worn; replacement/re-plating cycle is normal.
2) Wheel won't cut, surface is shiny (glazing)
Likely: bond too hard or chip load too low; consider dressing/truing strategy.
3) Excess heat / burning
Likely: chip evacuation and coolant path aren't working; adjust process before blaming grit.
1) What are bond types in diamond tools?
Bond types are the methods/material systems used to hold diamond particles on the tool body, controlling exposure, retention, heat behavior, and whether the tool self-sharpens.
2) Resin bond vs metal bond: which is better?
Resin bond is often chosen for smoother cutting and better surface finish, while metal/sintered bond is often chosen for stronger diamond retention, longer life, and better profile holding under higher loads.
3) Do electroplated diamond tools have a single layer?
Electroplated (nickel bond) diamond tools are commonly described as single-layer diamond products held by nickel plating.
4) Do electroplated wheels need dressing?
Many plated-wheel descriptions state there is no need for dressing during the working life; they run until the abrasive is worn.
5) What's the difference between truing and dressing?
Truing restores wheel geometry; dressing restores cutting action by exposing fresh abrasive edges.
6) Vacuum brazed vs electroplated: which should I choose?
Electroplated tools are often selected for sharpness and profile precision. Vacuum brazed tools are often positioned as more robust for harsher applications, with different sharpness-versus-durability tradeoffs depending on design and use.
