Diamond core drilling works through abrasion rather than impact, so it naturally takes longer than drilling with SDS-type percussion bits.

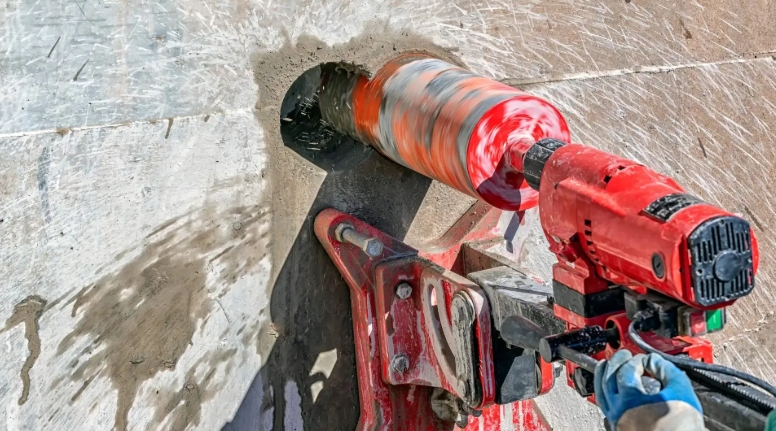

• Always mount your core drill on a stand for hole diameters over 67mm. This is a key safety recommendation from most manufacturers.
• Before you begin drilling, perform a comprehensive site inspection to ensure no gas, electrical, or water lines intersect your planned drill path.

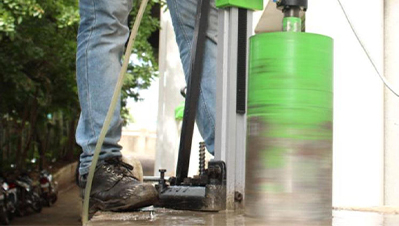

• Never apply body weight to the drill stand. This may cause an uneven “ribbing” on the core and lead to the barrel binding inside the hole.
• If using vacuum mounts, be cautious: a power failure or slurry entering the vacuum pump may cause the rig to detach and fall or swing dangerously.
• Always turn on the clean water supply before powering up the motor. This prevents overheating of the water jacket seals.
• Adjust water flow until the slurry exiting the hole looks like milky coffee. This consistency ensures the slurry contains sufficient abrasive content to expose new diamonds on the cutting segments.
• Too much water can flush away slurry prematurely, reducing cutting efficiency. Too little water causes segment overheating and glazing.
• Do not use the overload protection button as a substitute for a power switch — it's not designed for this and its failure is not covered under warranty.
Use heavy-duty extension cords no thinner than 2.5mm². Keep cords as short as possible to prevent voltage drops and motor strain.
A noticeable decrease in cutting speed often indicates that the diamond segments have glazed over.
• Remedy this by halving the water flow until the slurry becomes thick and muddy.
• Alternatively, drop Ajax powder or clean builder's sand into the hole, and reduce drilling speed and pressure to form an abrasive paste that will re-sharpen the segments.
• Drilling into abrasive materials like limestone or cinder blocks is another effective method.
Some operators flip the barrel and tap each segment with a reo bar to mechanically refresh the cutting edges — use caution with this approach.
• A color shift in the slurry (typically to gray), or a drop in drill motor RPM, signals that steel reinforcement is being cut.
• When this happens, reduce motor speed and decrease feed pressure by approximately one-third to prevent segment deformation or barrel damage.
• After cutting through steel, some operators reduce water briefly to re-dress the bit. Always remember to increase water flow again afterward.
• While concrete barrels can occasionally be used on limestone or asphalt, they wear out faster and are more prone to binding.
• Limestone-specific barrels feature harder and wider segments to handle coarse, abrasive dust and prevent clogging due to narrow clearance.
• These limestone barrels work on soft concrete but are not suitable for heavily reinforced concrete.
• Always choose a barrel appropriate to the material's hardness and content.
No two drilling jobs are alike. Factors affecting performance include:
• Age and hardness of concrete
• Type and size of aggregate
• Use of chemical additives
• Quantity and position of reinforcing steel
Under optimal conditions, a core barrel lasts 10–15 meters. However, lifespan may vary depending on bit bond type, concrete composition, drill motor power, water flow rate, and operator experience.
• When retracting the core bit, keep the motor running and reduce the water flow. This minimizes binding and ensures a smoother removal.
• Experienced operators often monitor the slurry for changes in consistency or color — a clear indicator that the barrel has transitioned from the concrete layer to road base.
• Apply waterproof grease to the drill spindle thread for easier bit changes.
• Never allow slurry or water into the motor's splash-resistant switch or air vents. Wait for full motor shutdown before placing it on the ground.
• For dry coring (in environments where water is prohibited), some operators substitute air for water. While not as effective and potentially harmful for seals over time, this may be suitable for small jobs.
After cracking the core from the base using a cold chisel, consider the following methods:
• Lever it out with screwdrivers (basic method)
• Use a pre-drilled anchor with a lifting bolt
• Employ the lasso and chisel setup
• For advanced users, repurpose an old barrel with notched sides to “grab” and lift the core out
Causes of jamming include:
• Internal/external segment wear
• Out-of-round barrels due to transport damage
• Inadequate water pressure
• Over-extended core length
To free a stuck barrel:
• Over-core with a larger barrel diameter
• Apply lubricant (WD40 or dish soap), and rock the carriage and barrel in tandem
• Use a slide hammer or core puller after removing the drill and stand
• Alternatively, thread a 1¼" UNC rod with double nuts into the stuck barrel, then use the nuts to drive the barrel upward
| Problem | Likely Cause | Solution |
|---|---|---|
| Segments bent | Excessive pressure on rebar | Reduce pressure; replace barrel |
| Barrel binding | Inadequate segment clearance | Replace barrel; clear debris frequently |
| Poor cutting | Glazed segments; improper RPM | De-glaze segments; adjust RPM |
| Excessive wear | Insufficient water; low speed | Check coolant flow; increase RPM |
| Vibration | Loose rig, worn bearings | Secure rig; inspect mechanical parts |
| Drill skips or stalls | Too high RPM; not enough pressure | Reduce speed; apply steady pressure |
| Loss of segment | Bit too hard for application | Use softer bond; reduce motor speed |
| Core not releasing | Improper extraction method | Use proper removal tools or methods |
| Bit overheating | Too little water; dry drilling | Increase water flow |
| Barrel warping | Rough transport; segment overheating | Replace barrel; avoid forcing through steel |
| Diameter (mm) | Suggested RPM |
|---|---|
| 8–29 | 3,000 |
| 30–45 | 1,500 |
| 46–65 | 1,200 |
| 66–89 | 900 |
| 90–125 | 600 |
| 126–200 | 450 |
| 201–400 | 300 |
A: Yes, but you must ensure the drill stand is securely anchored and plumbed properly. Use adjustable leveling feet or shim plates to compensate for slope. An unlevel setup can cause the bit to drift or bind.
A:
Wet coring uses water to cool the bit, control dust, and increase tool life – it's the preferred method for most materials (especially reinforced concrete).
Dry coring is used when water use is restricted (e.g. indoors, near electronics, or in hygiene-critical areas). However, it creates more dust and causes faster segment wear. Use dry-rated barrels only, and a vacuum for dust control.
A:
• Soft bond segments are used for hard materials (e.g., granite, high-MPA concrete) – they wear faster to expose new diamonds.
• Hard bond segments are better for soft/abrasive materials (e.g., asphalt, limestone) – they wear slower to extend segment life.
Matching the bond to the material hardness maximizes cutting efficiency and bit longevity.
A:
• The motor stalls frequently or overheats.
• You must apply excessive pressure to make progress.
• Segment glazing occurs even with proper technique.
In such cases, downsize the bit diameter or upgrade to a more powerful motor.
A: Yes, for small diameters (typically under 80mm) and shallow depths, handheld core drills can be used. But for precision, large diameters, deep holes, or reinforced concrete, a drill stand is highly recommended for safety and accuracy.
A:
• Use a slurry containment ring or a slurry vac system.
• Place plastic sheets or absorbent mats around the work area.
• For dry drilling, always pair with a dust extraction vacuum connected to the barrel's dust port.
A:
• Misalignment between the drill spindle and barrel.
• Loose or improperly anchored rig.
• Warped barrel or bent spindle.
This uneven wear can result in barrel binding or drilling off-center. Regular inspection and alignment checks are essential.
A: Generally, no. Reverse rotation can dislodge segments or damage the barrel threads. Instead, follow safe extraction methods such as lubricants, core pullers, or over-coring.
A:
• Daily: Clean water lines, check seals, inspect barrel for wear or cracks.
• Weekly: Lubricate spindle threads, check electrical cables and switches.
• Monthly: Inspect bearings, test vacuum anchor system (if used), ensure motor vents are clear.
A: Most standard barrels are 300mm to 450mm long. For deeper holes, barrel extensions or long-reach barrels are available. Be aware that deeper drilling increases friction, requires more water pressure, and may need intermediate core removal.
