Selecting the proper core drill bit size is one of the most important decisions in any concrete drilling project. Whether the goal is to install plumbing pipes, HVAC exhaust ducts, electrical conduits, cable passages, or structural anchoring systems, the drill bit diameter determines how cleanly, safely, and efficiently the hole can be created. A mismatched bit size may lead to slower progress, tool overload, enlarged hole edges, excessive vibration, or even structural cracking.
This upgraded guide combines practical construction experience with engineering-based logic to help both professional contractors and advanced DIY users choose the right core drill bit size for concrete walls in a consistent, methodical way.
Concrete is a dense, heterogeneous material composed of aggregates, cement paste, and often steel reinforcement. This combination means drilling requires tools that can penetrate hard surfaces while maintaining structural stability. The bit size directly influences:
Every installation type—from plumbing to electrical—has a required clearance. A 1–2 mm miscalculation may cause installation misalignment or require rework.
Larger diameters require higher torque, slower RPM, and stable feed pressure. Choosing a size beyond the drill's capability increases stall risk and heat buildup.
Correct sizing reduces friction, prevents overheating, and ensures the diamonds abrade the concrete properly.
Oversized bits used with handheld drills lead to dangerous kickback. Undersized bits may force installers to widen holes manually, increasing chipping risk.
In short:
Choosing the right bit size means safer drilling, better installation accuracy, and longer tool life.

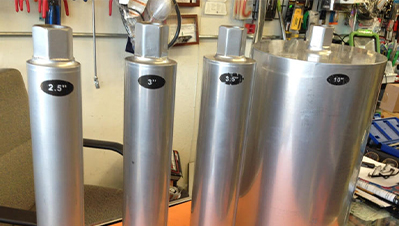

Concrete core bits are defined by outer diameter. Common diameters range from 35 mm to 400+ mm, depending on application.
Below is an expanded, realistic breakdown of sizes used in professional construction work:
| Diameter (mm/inch) | Typical Application |
|---|---|
| 35–50 mm (1.3″–2″) | Cable pass-through, sensor lines, small conduits |
| 63–76 mm (2.5″–3″) | Water pipes, small drains, electrical routing |
| 89–108 mm (3.5″–4.25″) | HVAC openings, washing machine drains, standard utility holes |
| 120–150 mm (4.75″–6″) | Bathroom exhaust vents, large PVC pipes, dryer ducts |
| 150–200+ mm (6″–8″+) | Commercial HVAC, structural penetrations, high-volume plumbing |
| 250–400 mm (10″–16″) | Specialized engineering demands, industrial penetrations |
Unlike geological core drilling (NQ, HQ, PQ), construction-grade core drill bit sizes focus entirely on hole diameter and drill motor capacity.
Choosing a size systematically involves four core questions:
Before picking a drill bit, identify the outer diameter (OD) of the pipe, conduit, sleeve, or fitting that must pass through the wall.
Most installers allow 5–10 mm clearance for easier insertion, sealing, and expansion space.
Example:
•50 mm pipe → 55–60 mm core bit
•100 mm vent → 110–120 mm core bit
•150 mm HVAC duct → 160–170 mm core bit
Never choose a core bit with the same size as the component's OD. Concrete friction and uneven edges require a margin.
Concrete walls vary significantly:
| Wall Type | Typical Thickness | Notes |
|---|---|---|
| Residential interior | 80–120 mm | Usually easier to drill |
| Residential exterior | 100–180 mm | May include rebar |
| Commercial walls | 150–250 mm | Denser mix + reinforcement |
| Structural shear walls | 200–400 mm | Requires rig-mounted systems |
Thicker or stronger concrete increases load on large-diameter bits.
For walls over 150 mm, wet drilling is strongly preferred.
Almost every wall 100 mm or thicker includes some steel reinforcement.
Rebar affects:
•Bit size choice
•Feed pressure
•RPM
•Cooling requirements
•Expected drilling speed
For medium to large bits, encountering rebar without adequate torque can stall the drill or chip segments. Diamond core bits are specifically designed to cut both aggregate and steel, but only if used at proper RPM and cooling levels.
Equipment dictates the maximum safe diameter:
| Drill Type | Safe Diameter Range | Notes |
|---|---|---|
| Standard handheld core drill | Up to 60–80 mm | Best for small tasks |
| High-torque handheld | Up to 110–125 mm | Requires stable grip |
| Rig-mounted core drill | 125–400+ mm | Essential for large holes |
| SDS / SDS Max systems | 35–82 mm | Not for large-diameter coring |
Never use oversized bits on handheld machines.
Large bits exert rotational force that may physically twist the user.
This section expands the practical decision tree for real construction tasks.
Typical components:
•Junction box conduits
•Fiber optic cables
•CCTV wires
•Sensor routing
Recommended bit sizes: 35–50 mm
These sizes give installers enough clearance while minimizing unnecessary material removal.
These tasks require stable, round, and slightly oversized holes to accommodate pipe sleeves and sealing foam.
Use the following guidelines:
| Pipe Size | Recommended Core Bit |
|---|---|
| 50 mm pipe | 60 mm core bit |
| 63 mm pipe | 70–75 mm core bit |
| 75 mm pipe | 85–90 mm core bit |
| 110 mm pipe | 120–125 mm core bit |
Reason: Pipes rarely fit their nominal OD; they often require an extra 5–10 mm clearance for couplers and insulation.
HVAC penetrations often require precise, clean cuts for proper airflow.
| Vent Diameter | Recommended Core Bit |
|---|---|
| 100 mm vent | 110–120 mm |
| 150 mm vent | 160–170 mm |
| 200 mm duct | 210–220 mm |
These holes typically go through external concrete walls, meaning the walls may be thicker and reinforced.
For large holes used in engineering-level projects:
•Commercial drainage
•Factory exhaust systems
•Fire-safety routing
•Multi-pipe passages
Recommended sizes: 150–400 mm
Such diameters require rig-mounted drilling and continuous water flow.
Even after selecting a diameter, three engineering considerations remain essential.
As bit diameter increases:
•Required RPM decreases
•Required torque increases
•Feed pressure must remain stable
Examples:
•50 mm bit → ~1500–2000 RPM
•100 mm bit → ~700–1200 RPM
•150 mm bit → ~400–800 RPM
Using the wrong RPM causes:
❌ Overheating
❌ Segment glazing
❌ Slow cutting
❌ Excess vibration
✔ Extends segment life
✔ Prevents heat accumulation
✔ Stabilizes cutting
✔ Reduces dust
✔ Allows larger bit sizes to operate smoothly
✔ Better for indoor, dust-controlled environments
✔ Useful for SDS systems
✔ Ideal for shallow holes
Dry drilling should not be used for large-diameter coring unless the bit is specifically engineered for it.
A pilot hole (8–10 mm) ensures:
•Accurate center alignment
•Reduced wandering
•Smoother engagement for large bits
•Less edge chipping
For extremely large holes, step drilling—starting with a smaller core bit and increasing diameter incrementally—may improve accuracy and reduce load.
Here are expanded explanations of frequent jobsite errors:
→ Always add clearance.
→ Increases torsional kickback and safety hazards.
→ Rebar requires proper RPM and cooling to prevent segment damage.
→ Thick walls require extended barrels.
→ Causes thermal cracking and premature wear.
→ Motors have a maximum rated diameter—exceeding it risks equipment failure.
A 2″ pipe usually requires a 55–60 mm core drill bit.
No. Always allow 5–10 mm extra for clearance.
Most bathroom vents require 110–120 mm holes.
Not recommended. SDS+ is ideal for 35–82 mm.
Use a stand-mounted rig and wet drilling for anything above 120 mm.
Choosing the right core drill bit size for concrete walls is a process that balances target hole diameter, material hardness, reinforcement content, drilling equipment, cooling method, and safety considerations. By evaluating the application requirements and matching them to the appropriate diameter range, you ensure cleaner cuts, faster drilling, longer tool life, and safer installation outcomes.
For contractors and professionals, proper bit sizing improves jobsite productivity, reduces rework, and supports high-quality installation across plumbing, HVAC, electrical, and industrial applications. Whether you're creating a small conduit opening or a large HVAC duct penetration, following these principles guarantees efficient and predictable drilling performance.
