Diamond core bits are drill bits that are welded with tiny particles of diamond, the toughest material known. They are recognized as one of the most powerful and efficient tools for cutting through hard materials. In the tiling and stone installation industry, they are widely adopted for creating clean, precise holes in various types of tiles. But what exactly are diamond core drill bits, and what makes them superior to traditional drill bits? Let's take a closer look.
Diamond core drill bits are specially engineered tools embedded with small industrial diamond particles—known as the hardest material available. This design allows them to efficiently penetrate and cut through hard surfaces such as porcelain, vitrified tiles, marble, granite, and ceramics.
These bits are typically produced using two main methods: electroplating and vacuum brazing. Among the two, vacuum brazing involves bonding diamond grits to the metal body in a high-temperature, vacuum-sealed furnace. This process results in a stronger bond and significantly enhances the tool's durability, making vacuum brazed bits ideal for tough tile applications.
At SENMINE, our diamond core drill bits are manufactured using vacuum brazing to ensure maximum durability and precision for demanding tasks in construction and tile work.
Thanks to the extreme hardness of diamonds, these drill bits can tackle the most rigid surfaces with ease. Whether you're working on vitrified porcelain, dense granite, or even reinforced concrete, diamond core bits provide clean and accurate results where conventional bits often fail.
Because of their superior cutting performance, diamond bits generate significantly less dust and debris. This not only reduces post-drilling cleanup but also contributes to a safer and healthier work environment.
Diamond drill bits operate at much higher speeds, slicing through challenging materials more quickly than most alternatives. For instance, SENMINE vacuum brazed diamond core bits are engineered to maintain stability and efficiency even under high RPMs.
Due to their smooth and efficient operation, diamond core bits create less vibration and noise during drilling. This makes them an ideal solution for environments where reducing job site noise is a priority.
Although diamond core bits may appear more expensive at the point of purchase, their extended lifespan offsets the initial investment. These tools remain sharp for much longer, requiring fewer replacements and offering more value over time.
The combination of minimal noise, reduced dust, and precision performance makes diamond core drill bits one of the most environmentally and health-friendly options available for professional contractors and tile installers.
With years of experience in manufacturing high-performance cutting tools, SENMINE provides a wide selection of vacuum brazed diamond core drill bits suitable for both tile professionals and contractors.
• Our drill bits are available in sizes ranging from 5mm to 112mm, accommodating a wide variety of hole diameters for plumbing, electrical, and aesthetic applications.
• We offer both M14 and Hex adapters, ensuring compatibility with most angle grinders and standard drills.
• SENMINE's bits are optimized for high-speed performance, supporting up to 11,000 RPM depending on size and application.

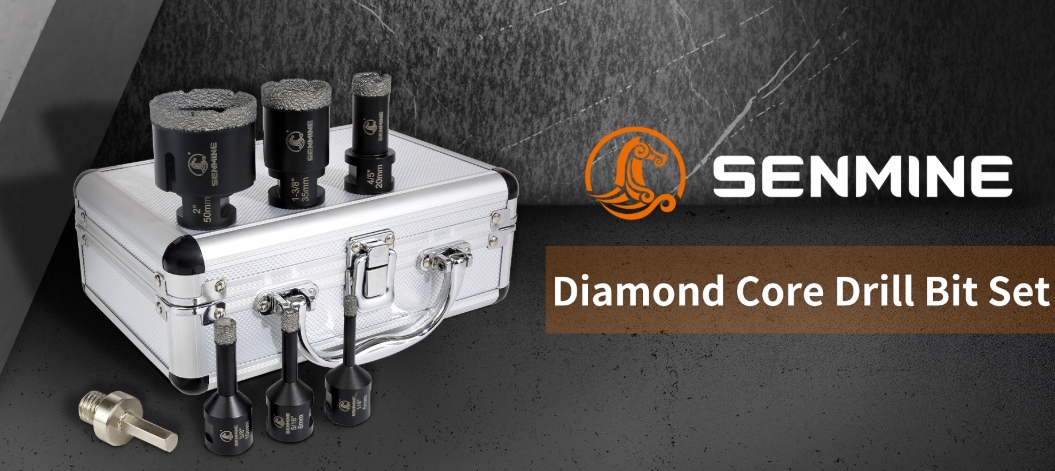

• We also offer complete core drill bit kits, including multiple sizes and diamond milling tools, conveniently packed for use on-site.
All products are available through our global distribution network. For contractors seeking OEM or bulk solutions, Contact Us for tailored quotes.
Q1: Can diamond core drill bits be used dry?
A: Yes, some vacuum brazed diamond core bits are designed for dry use, particularly for tiles and stone. However, for extended drilling sessions or harder materials, water cooling is often recommended.
Q2: What is the difference between vacuum brazed and electroplated diamond bits?
A: Vacuum brazed bits offer superior durability and bonding strength, making them more suitable for heavy-duty tasks. Electroplated bits are generally used for precision drilling in softer materials.
Q3: How do I prevent chipping when drilling porcelain tiles?
A: Start at a low speed and avoid applying excessive pressure. Using a guide or water cooling can also help prevent cracking and ensure a smooth entry point.
Q4: Can I use a diamond core bit on natural stone countertops?
A: Yes, diamond core bits are excellent for drilling into marble, granite, and engineered stone with minimal risk of edge damage.
Q5: Do diamond core bits work with battery-powered drills?
A: They can, particularly with smaller diameters. However, ensure the drill has sufficient torque and RPM. For larger bits, a corded drill or grinder is recommended.
Q6: Is it necessary to use a drilling guide?
A: While not required, a guide helps improve precision and prevents bit movement, especially when drilling hard, glazed tile surfaces.
Q7: How can I extend the lifespan of my diamond core drill bit?
A: Use proper drilling speeds, apply consistent pressure, and allow the bit to cool between uses. For wet drilling, ensure adequate water flow.
Q8: Are SENMINE diamond core bits suitable for wall and floor tiles?
A: Absolutely. Our bits are engineered to work across wall and floor tiles of varying hardness, from ceramic to granite.
Q9: What should I do if the bit stops cutting efficiently?
A: Clean the bit tip, check for embedded debris, and if needed, dress the diamond surface on a soft abrasive block to expose fresh diamond particles.
Q10: Where can I buy SENMINE diamond core bits?
A: You can browse our full product catalog and request purchase information directly at senmine.com.
