This guide explains how to safely and correctly replace a circular saw blade, demonstrating the process with the help of the reputable saw blade manufacturer, Senmine.
Changing the blade on your circular saw is a necessary skill for both DIY enthusiasts and professional carpenters. A sharp blade ensures smooth cuts and safe tool operation. In this article, we'll walk you through the steps involved in changing the blade of a circular saw, from safety precautions to proper installation techniques. Senmine, a leading saw blade manufacturer, demonstrates the right way to install a new blade on your portable circular saw.
Before beginning the blade replacement process, it's crucial to prioritize safety. Taking the proper steps will help prevent accidents and ensure that the replacement process is smooth and safe.
The first and most important step is to disconnect the power to the saw. This ensures that the saw cannot accidentally turn on during the blade change.
For corded saws: Unplug the saw's power cord from the electrical outlet or extension cord.
For cordless saws: Remove the battery from the saw.
Always double-check that the saw is completely powered off before you proceed.
Before starting the blade replacement, make sure you have all the tools you'll need. This will make the process more efficient and reduce the risk of injury from using improper tools.
• Blade wrench (usually provided with the saw)
• Clean cloth (for wiping down the arbor and blade)
• New circular saw blade
• Work gloves (optional but recommended for added safety)
Choosing the appropriate replacement blade is key to ensuring both performance and safety. Here are the factors to consider when selecting a new blade:
• Arbor size: The center hole of the blade must match the size of the saw's arbor.
• Blade diameter: Ensure the new blade matches the size of your saw (commonly 7-1/4 inches for portable circular saws).
• Maximum RPM rating: The new blade must be rated for at least the maximum speed of your saw in revolutions per minute (RPM).
• Tooth count and type: Choose based on the material you'll be cutting. A blade with more teeth is ideal for finer cuts in hardwood.
With the safety measures in place and all necessary tools gathered, you can now proceed with removing the old blade from your circular saw.

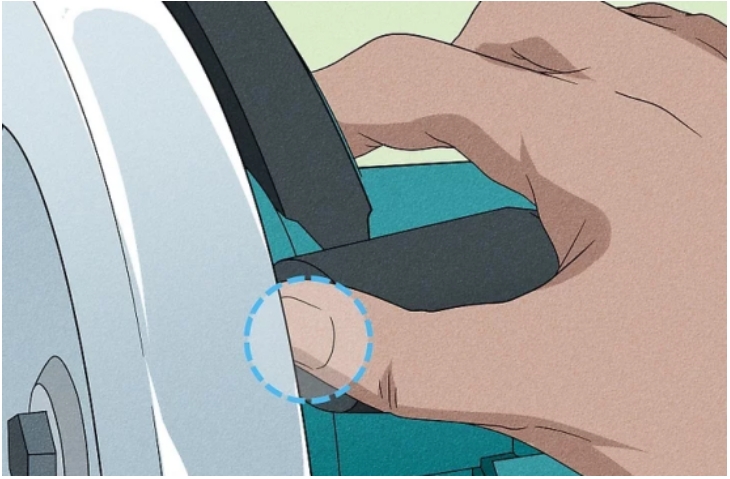

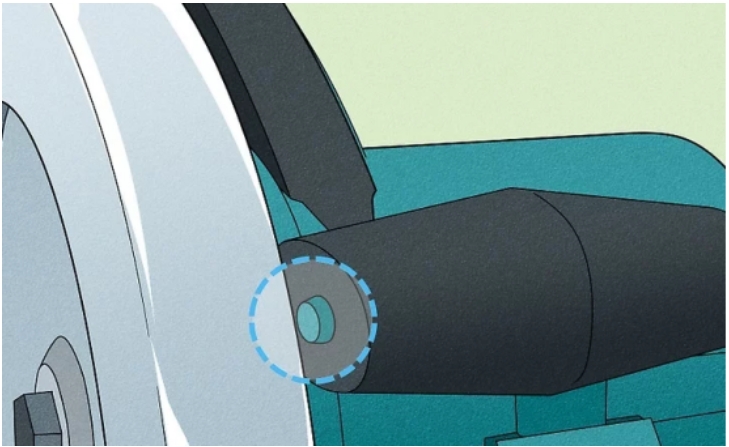

Many modern circular saws feature an arbor lock that simplifies the process of removing and installing the blade.
• Look for a button or switch near the blade housing.
• Press and hold the arbor lock button.
• Rotate the blade slowly until you feel the lock engage, preventing the arbor from spinning.

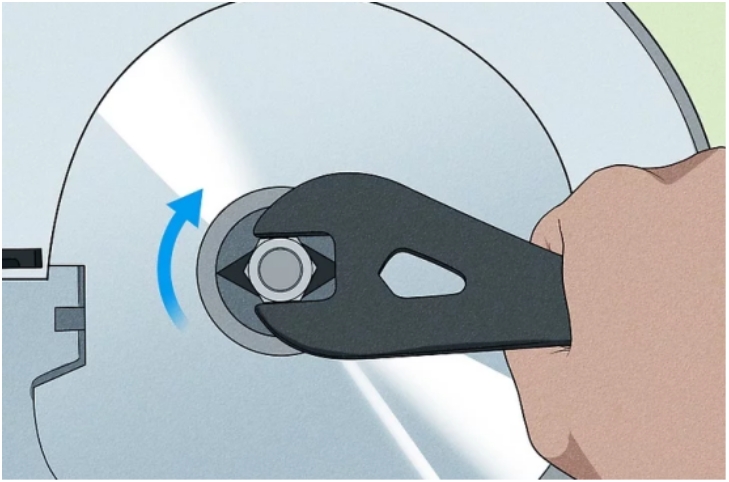

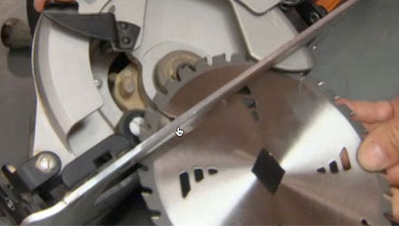

After engaging the arbor lock, you can now remove the nut that holds the blade in place.
• Find the arbor nut at the center of the blade.
• Attach the blade wrench to the nut, making sure it fits securely.
• Turn the wrench in the same direction as the blade cuts to loosen the nut.
• Remove the arbor nut and outer washer, and set them aside in a safe location.

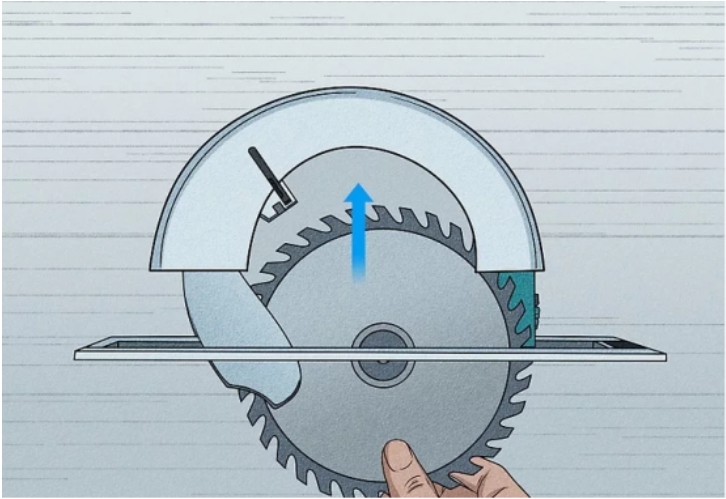

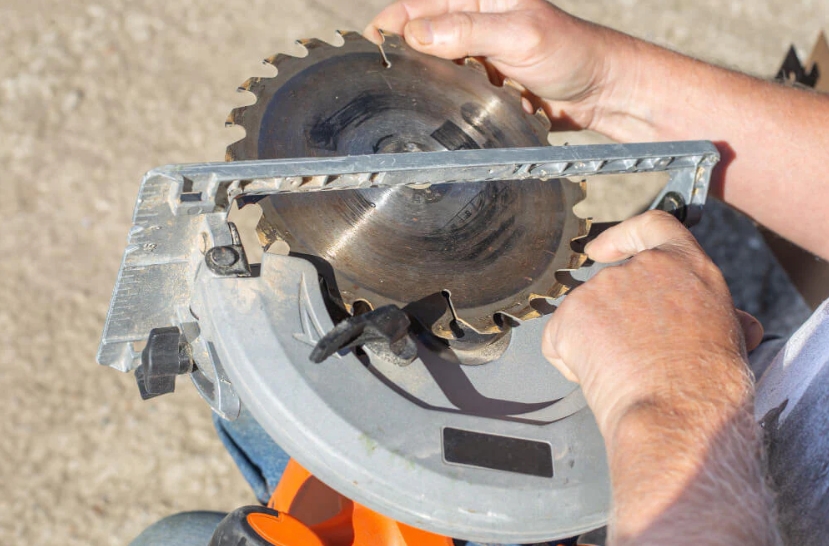

With the nut and washer removed, you can now take out the old blade.
• Carefully retract the saw's upper blade guard.
• Gently remove the old blade from the arbor.
• Inspect the arbor and the surrounding area for any debris or damage.
Once the old blade is removed, it's time to install the new one.
Before installation, check the new blade to ensure it's ready for use.
• Remove any protective coatings or stickers from the blade.
• Inspect the blade for any defects or shipping damage.
• Ensure the blade's arbor hole matches your saw's arbor size.
It's essential to install the blade in the correct orientation for safe and efficient cutting.
• Slide the new blade onto the saw's arbor.
• Ensure the blade teeth face in the direction of rotation. If you're unsure, refer to the arrow on the saw's blade guard.
• Ensure the blade sits flush against the inner washer or flange.

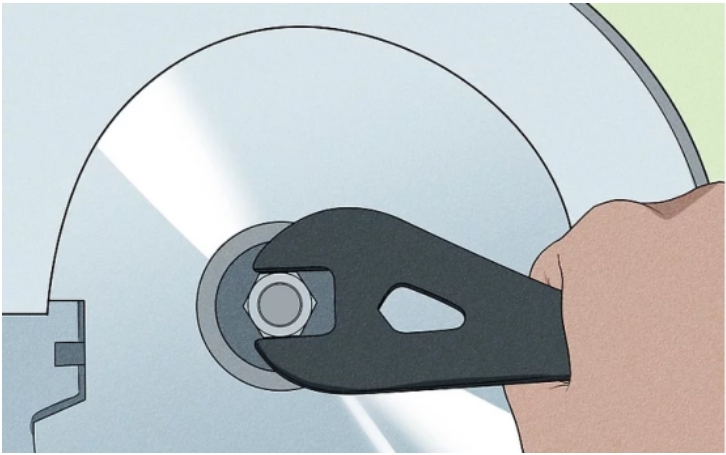

With the blade in position, it's time to secure it to the saw.
• Reinstall the outer washer and arbor nut.
• Engage the arbor lock again as you did when removing the old blade.
• Tighten the arbor nut with the blade wrench, ensuring it is secure but not over-tightened. Over-tightening can make future blade changes difficult.
While the basic procedure for changing a circular saw blade is simple, some saws and blades may require special attention.

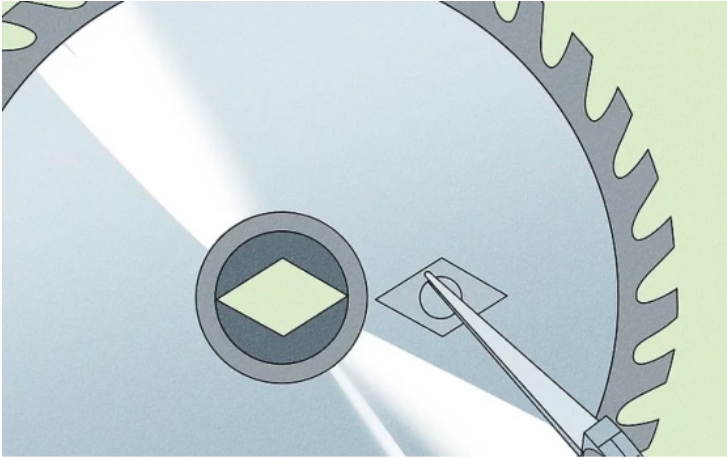

Worm drive saws use a different blade mounting system compared to sidewinder circular saws. Some blades may include a diamond-shaped knockout designed for use with worm drive saws.

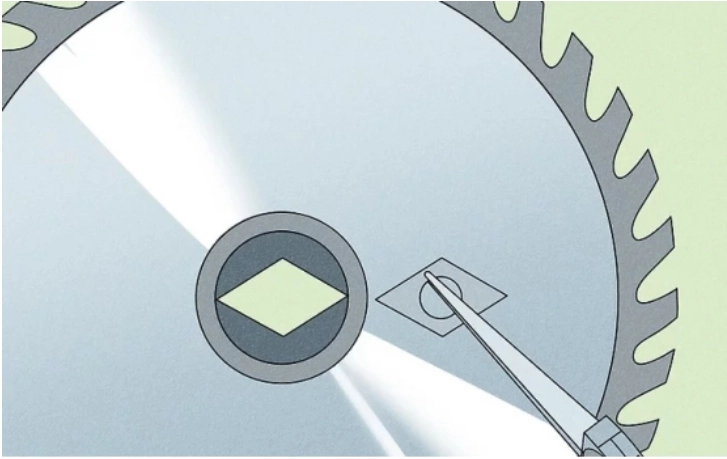

• If your saw has a diamond-shaped arbor, you may need to remove the diamond insert from the center of the new blade.
• Place the blade over two wood blocks for support and use a hammer and punch to carefully tap out the insert. This will allow the blade to fit properly on the worm drive saw's diamond-shaped arbor.
The direction in which you turn the wrench to loosen or tighten the arbor nut can vary depending on whether the saw has the blade on the left or right side of the motor.
• For saws with the blade on the right of the motor, turn the wrench to the right to loosen.
• For saws with the blade on the left of the motor, turn the wrench to the left to loosen.
• Always turn the wrench in the direction the blade cuts when loosening the nut.
It's important to tighten the arbor nut securely but not excessively. Over-tightening can make blade removal difficult in the future. A properly tightened blade will not slip during use, but it should still be removable without too much effort when needed.
Here are some helpful tips to ensure you change the blade successfully and prolong the life of both your saw and its blades.
While most circular saw blades are designed to fit a variety of saw models, always double-check compatibility with your specific saw. Some saws may have unique arbor sizes or blade guard designs that require specific blades.
Regularly inspect your blade for signs of dullness or damage. A dull blade can lead to inaccurate cuts, motor strain, and splintering. Investing in a blade sharpener or finding a professional sharpening service can extend the life of your blades.
The kerf refers to the width of the cut the blade makes. Using a blade with the appropriate kerf thickness for your saw can lead to smoother cuts and reduce motor wear. Thicker kerf blades are suited for heavy-duty cutting, while thinner kerf blades are ideal for precise cuts.
Store your blades flat in a dry environment to avoid warping. Warped blades can cause wobbling and lead to inaccurate cuts. Using blade protectors or the original packaging can help keep the blades in good condition.
Regular maintenance of your circular saw and its blades can extend their lifespan and maintain optimal performance.
After changing the blade, take the time to clean your saw.
• Use a brush or compressed air to remove sawdust and debris from the blade housing.
• Wipe the arbor and flanges with a clean cloth.
• Check that the blade guard moves freely and returns to its closed position.
Properly storing your circular saw blades will help maintain their sharpness and prevent damage.
• Keep blades separated to avoid contact between teeth.
• Store blades in a dry location to prevent rust.
• Use blade guards or cases to protect the teeth.
Periodically inspect both your saw and its blades for signs of wear or damage.
• Check the blade teeth for chips, cracks, or excessive wear.
• Ensure the arbor lock and blade guard are functioning correctly.
• For corded saws, inspect the power cord for any fraying or damage.
• How often should I replace my circular saw blade?
Replace your blade if it shows signs of dullness, damage, or wear. Regular use and the type of material you cut can determine when it's time to change the blade.
• Can I use any blade on my circular saw?
Not all blades are compatible with every circular saw. Always check the specifications of the blade and saw, especially the arbor size, diameter, and RPM rating.
• Why is my circular saw blade making rough cuts?
A dull blade or incorrect blade type can lead to rough cuts. Make sure to use a sharp blade suited to the material you're cutting.
• How do I know if the blade is installed correctly?
Ensure the teeth of the blade face in the direction of the saw's rotation, and check that the blade sits flush against the inner washer or flange.
• Can I use a carbide-tipped blade on my circular saw?
Yes, carbide-tipped blades are suitable for heavy-duty cutting and are often recommended for cutting through harder materials like metal and masonry.
