Most people think of diamonds as gemstones, but on a jobsite they're pure engineering. The diamonds in a high-performance saw blade are carefully designed particles that chew through granite, reinforced concrete, ceramics, and engineered stone all day long.
Today, almost none of those diamonds come from mines. According to the U.S. Geological Survey, synthetic industrial diamonds account for more than 99% of global industrial diamond production and consumption. Lab-grown HPHT and CVD diamonds deliver consistent quality at scale, reshaping the global diamond tools market.
This article breaks down what's really inside a diamond saw blade, why synthetic industrial diamonds have replaced natural ones, and how composition affects performance, lifespan, and cost. We'll also connect the dots to real-world blade selection and show how SENMINE designs blades for demanding construction environments.

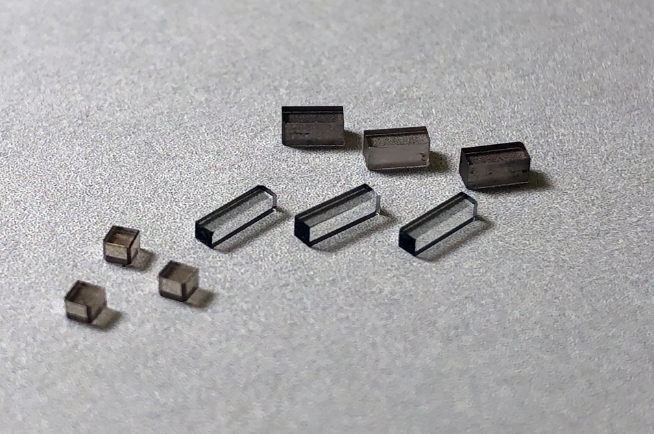

Industrial diamond simply means diamond used for cutting, grinding, drilling, and polishing rather than for jewelry. The material is the same (crystalline carbon), but:
•Gem diamonds are selected for clarity, color, and size.
•Industrial diamonds are optimized for hardness, toughness, shape, and cost.
Industrial diamond can be:
•Natural – lower-grade stones from mining that are unsuitable as gems.
•Synthetic – lab-grown crystals engineered via HPHT (high pressure, high temperature) or CVD (chemical vapor deposition).
USGS notes that synthetic industrial diamond is considered superior in many applications because it can be produced in large volumes and its properties can be tailored for specific tasks. As a result, manufactured diamond has almost completely replaced natural industrial diamond in industrial use.
Historically, some cutting tools used natural industrial diamonds. Today, that's essentially over. In diamond saw blades, synthetic industrial diamond is the standard.
| Property | Natural Industrial Diamond | Synthetic Industrial Diamond |
|---|---|---|
| Source | Mined from the earth | Grown in HPHT or CVD reactors |
| Market share in tools | <1% | >99% of industrial diamond usage |
| Cost | High, volatile | 50–70% cheaper (typical range) |
| Shape | Irregular, random | Blocky/engineered crystals |
| Consistency | Variable between batches | Highly consistent particle size & quality |
| Thermal stability | Good, but not optimized | Tunable, often enhanced |
| Supply | Limited by mining | Scalable, factory-made |
| Ethics & environment | Linked to mining impact | Avoids large-scale mining, depends on energy mix |
For contractors and blade designers, the real advantage of synthetic is predictability. A segment filled with uniform, engineered diamond grit wears in a controlled way from the first cut to the last, which means more consistent cutting depth, less vibration, and fewer surprises on site.

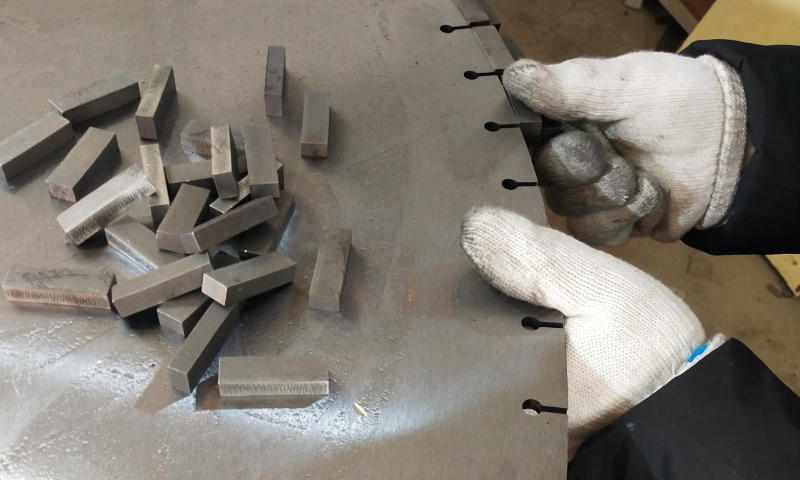

A diamond saw blade is a laminated tool, not just "a circle with diamonds on it". Two main components do the heavy lifting:
1. Diamond segments – the cutting teeth.
2. Steel core – the backbone that keeps everything straight, cool, and safe.
From the outside, segments look like small silver or gray blocks. On the inside, they're carefully balanced composites of diamond and metal.
A simplified example formulation might look like this:
•Synthetic diamond grit (abrasive) – about one-third by volume.
•Metal bond (bronze, copper, cobalt, iron alloys) – most of the remaining matrix.
•Additives (graphite, nickel, carbides, borides, etc.) – to tune lubrication, strength, and thermal behavior.
Actual ratios vary by manufacturer, blade grade, and application. Segments are produced by mixing powders, pressing them at high pressures (often 150–300 MPa), then hot-pressing or sintering at elevated temperatures to form dense, strong teeth that lock the diamond particles in place.
A diamond segment is not designed to stay unchanged forever. It is deliberately engineered to wear in a controlled way: as the outer diamonds dull, the metal bond slowly erodes, exposing fresh, sharp particles. That self-sharpening action is what keeps cutting speed and quality consistent instead of letting the blade glaze and stall.
At SENMINE, we select high-grade synthetic diamonds (commonly in the 30–60 mesh range for construction blades) and match them with bond systems designed for specific materials like cured concrete, green concrete, asphalt, or granite. The goal is simple: predictable behavior, not surprises.

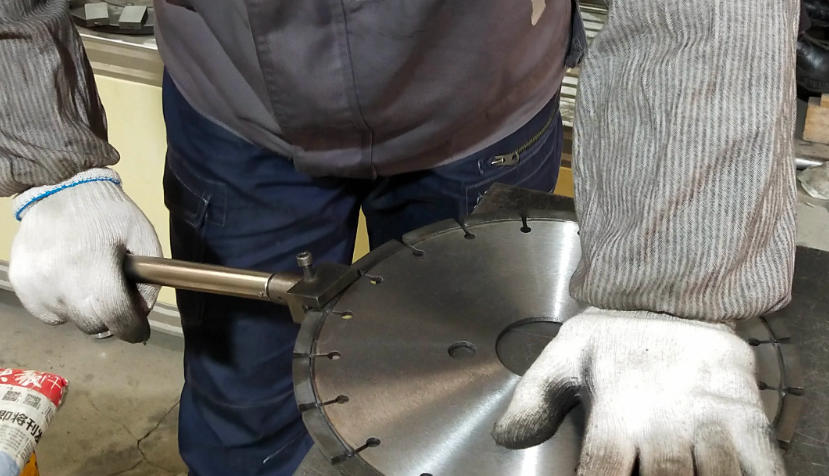

The steel core is easy to overlook, but it makes or breaks the blade in demanding work:
•Rotational stability – a precisely tensioned core keeps the blade running true at up to several thousand RPM, reducing wobble and side vibration.
•Heat dissipation – the steel body acts as a heat sink, pulling heat away from segments during long cuts.
•Structural integrity – slots and tension rings manage thermal expansion and mechanical stress so the blade doesn't warp or crack.
High-quality cores are usually laser-cut from heat-treated carbon steel and finished to extremely tight runout tolerances (on the order of hundredths of a millimeter). That reduces vibration, improves edge quality, and helps protect both the saw and operator.
SENMINE uses laser-cut, heat-treated cores with strict flatness and runout control, combined with carefully designed gullets and, where needed, noise-reduction features for indoor or urban work.
Composition isn't just about lab chemistry—it directly shapes how a blade feels on the saw and how many meters you can cut before swapping discs.
•Coarser diamond (e.g., 30/40 mesh)
Cuts more aggressively, ideal for hard, dense materials like cured reinforced concrete and granite. The trade-off is a rougher surface finish.
•Finer diamond (e.g., 50/60 mesh and above)
Produces smoother cuts and fewer chips, better for brittle materials such as porcelain tile and ceramics where edge quality matters more than raw speed.
Diamond concentration describes how much diamond is present per unit volume of the segment.
•Higher concentration → longer life, better stability, and more consistent performance on heavy-duty jobs—but also higher cost.
•Lower concentration → more economical blades for occasional use or lighter materials, where ultimate lifespan is less critical.
The metal bond must wear at just the right rate for the material:
•Soft bond – used for very hard, low-abrasion materials (hard concrete, granite). The bond wears faster, shedding dull diamonds and revealing fresh edges.
•Medium bond – general-purpose, balancing speed and life.
•Hard bond – used for soft, abrasive materials (asphalt, green concrete) where the matrix would otherwise be ground away too quickly.
If bond hardness and material don't match, performance drops fast: the blade either glazes (too hard bond) or wears out prematurely (too soft bond).
Because synthetic diamonds are engineered, their shape and surface can be tuned:
•Blocky or angular crystals offer a good balance of toughness and sharp points.
•Needle-like or more irregular shapes can cut very aggressively but may chip more easily.
•Titanium or nickel coatings on diamond surfaces improve bonding to metal matrices and help resist heat and oxidation.
All of these variables—grit size, concentration, bond hardness, crystal shape and coating—are tuned together. That's why two blades with "the same diameter" can feel completely different in the cut.
Most construction-grade diamond blades combine sintered segments with a laser-welded or brazed joint to the steel core.
For the majority of concrete and masonry blades:
1. Synthetic diamond and metal powders are mixed.
2. The mixture is pressed into segment shapes and hot-pressed/sintered into dense blocks.
3. Segments are laser-welded or silver-brazed to the steel core.
Laser welding creates a strong metallurgical bond that can withstand high temperatures and heavy loads, making it the standard choice for heavy-duty concrete and asphalt cutting.

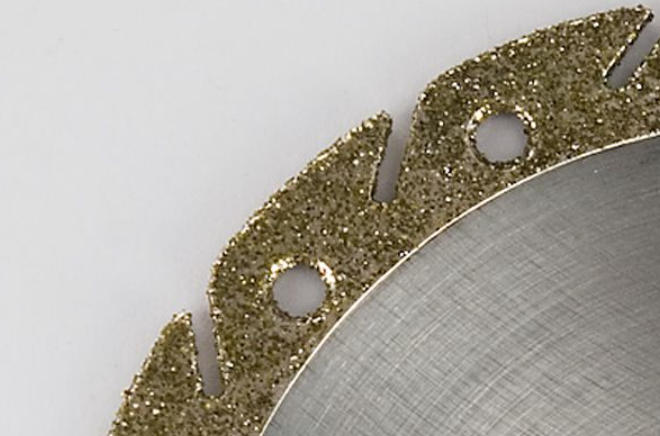

Electroplated blades use a thin single layer of diamond held in a nickel matrix:
•Very thin kerf, sharp initial cutting.
•Ideal for glass, ceramics, and precision cuts where segment loss is unacceptable.
However, once that single diamond layer wears out, the blade is effectively finished.
Vacuum brazed blades braze exposed diamonds directly to the steel body:
•Extremely sharp, fast-cutting edges.
•Capable of cutting a wide range of materials—concrete, stone, masonry, metals, and composites—depending on design.
•Popular for rescue/demolition, metal cutting, and aggressive one-blade-does-almost-everything tasks.
•Sintered + laser-welded → core choice for professional concrete, asphalt, and stone cutting.
•Electroplated → precision, thin-kerf work on brittle materials.
•Vacuum brazed → fast, versatile cutting where speed and aggressiveness matter more than ultimate blade life.
The diamond tools industry is in a growth phase:
•Global diamond tools market size exceeded USD 10.8 billion in 2024.
•It is expected to grow at a CAGR of about 6.2% from 2025 to 2034.
•Forecasts suggest it could reach around USD 19.5 billion by 2034.
Drivers include:
•Large-scale infrastructure and urbanization, especially in Asia-Pacific.
•Increased use of hard, engineered materials (high-performance concrete, engineered stone).
•Expansion in aerospace, automotive, and electronics, where precision diamond tools are critical.
In parallel, USGS expects demand for synthetic industrial diamond to remain strong in construction and manufacturing as it continues to dominate industrial usage.
Beyond conventional metal bonds and synthetic diamonds, researchers are pushing boundaries with advanced materials.
Recent studies on 3D multi-walled carbon nanotube (MWCNT)–diamond composites report:
•Hardness around 91.6 GPa.
•Fracture toughness roughly six times higher than conventional synthetic diamond.
These are still lab-scale materials, but they show how future blades could combine extreme hardness with far greater resistance to chipping and thermal cracking.
Other work on zirconium diboride (ZrB₂)–reinforced PCD and coatings shows:
•Improved high-temperature stability (delaying graphitization compared with standard PCD).
•Good thermo-mechanical wear behavior in high-temperature dry cutting, though with trade-offs in low-temperature abrasion.
ZrB₂ and related ultra-high-temperature ceramics are attractive because of their high melting points, hardness, and excellent thermal conductivity.
For now, most of these technologies live in high-end PCD tools and experimental products, but they are gradually influencing mainstream blade design.
From a sustainability perspective, synthetic industrial diamonds offer several advantages:
•No large-scale open-pit or alluvial mining, which means less land disturbance, lower water use, and fewer ecosystem impacts.
•No conflict diamond issues, since lab production is traceable and factory-controlled.
That said, HPHT and CVD synthesis are energy-intensive. The environmental footprint depends heavily on the electricity mix (coal vs renewables). When powered by low-carbon energy, lab-grown industrial diamonds can offer significant overall environmental benefits compared with mined stones.
As green building standards tighten, more governments and contractors are paying attention to supply chain transparency, making synthetic industrial diamonds a natural fit for sustainable infrastructure projects.
Synthetic diamonds are everywhere in modern industry:
•PCD tools – for machining aerospace composites, non-ferrous metals, and high-silicon aluminum.
•CVD diamond coatings – on micro-tools, wire-drawing dies, and precision wear parts.
•Thermal management – diamond heat spreaders in power electronics and high-performance computing, exploiting diamond's exceptional thermal conductivity.
The same properties that make diamond saw blades so effective—hardness, wear resistance, thermal stability—power a much wider ecosystem of high-precision tools.
Knowing that "synthetic vs natural" is basically settled (synthetic wins), the practical question becomes: how do you choose the right blade for your job?
Below is a simplified selection guide that links composition to application.
| Material / Job Type | Recommended Diamond & Bond Setup | Notes |
|---|---|---|
| Cured reinforced concrete | Medium-coarse synthetic diamond (30/40–40/50), medium-soft bond, laser-welded segments, wet cutting preferred | Handles rebar and high compressive strength |
| Green concrete / abrasive concrete, asphalt | Medium diamond, hard bond, wide gullets, high diamond concentration | Resists fast bond wear from abrasive matrix |
| Granite & engineered stone | Medium-fine diamond (40/50–50/60), medium bond, turbo or segmented/turbo rim | Balance between chip control and speed |
| Porcelain tile & ceramics | Fine diamond (50/60+), hard bond, thin-kerf continuous rim, usually wet cutting | Minimizes chipping on brittle edges |
| General demolition / rescue (mixed materials) | Coarse diamond with robust vacuum-brazed or heavy-duty sintered segments, multi-material design | Prioritize safety and versatility over perfect finish |
On site, you'll still consider saw type, power, and whether you can use water or must cut dry. But matching diamond grit, concentration, and bond hardness to the material is the fastest way to avoid burning blades, slow cutting, or dangerous glazing.
SENMINE develops dedicated segment formulas for different materials and cutting conditions, so contractors can select a blade family for concrete, asphalt, stone, or multi-material demolition instead of guessing.
As a professional diamond tools manufacturer, SENMINE focuses on transforming material science into reliable, field-proven products:
•Engineered synthetic diamonds – we specify grit size, shape, and surface treatment (often 30–60 mesh) based on target materials and saw power.
•Application-specific bond systems – different bronze/copper/cobalt matrices for cured concrete, green concrete, asphalt, granite, and engineered stone.
•Precision steel cores – laser-cut, heat-treated, and tensioned cores with very low runout, optimized slot geometry, and, where required, noise-reduction features.
•Quality control – incoming diamond inspection, segment density and hardness testing, weld strength testing, and in-house cutting trials before production release.
•OEM & customization – segment heights, diameters, arbor sizes, and private labeling can be tailored for distributors and large contractors.
The result is blades that don't just look good on paper—they survive real-world jobsites where schedule, safety, and total cutting cost per meter matter most.
If you're planning a large project or building your own blade line, you can contact us to discuss bulk orders, OEM customization, and tailored diamond formulations.
•Natural industrial diamonds now play a tiny role in cutting tools: they're rare, costly, and inconsistent.
•Synthetic industrial diamonds dominate because they are engineered, scalable, and customizable.
•Blade performance is driven less by "real vs lab diamond" and more by segment composition—grit size, concentration, bond hardness, and crystal design—plus the steel core and manufacturing method.
•The diamond tools market is set to grow strongly through 2034, with innovations like MWCNT-reinforced composites and ZrB₂-modified PCD pointing toward smarter, tougher blades.
For contractors and distributors, the key takeaway is simple: choose blades from a manufacturer that understands composition, not just diameter and price. At SENMINE, every blade is engineered as a system—synthetic diamonds, bond, and core working together—to deliver safer, sharper, longer-lasting cutting solutions.
Q1: Are real (natural) diamonds still used in diamond saw blades?
In practice, almost all modern diamond saw blades use synthetic industrial diamonds. USGS data shows that synthetic diamonds account for more than 99% of industrial diamond production and consumption. Natural industrial diamonds are now a rare exception because they're more expensive and less consistent.
Q2: Why are synthetic diamonds better for cutting tools?
Synthetic diamonds are grown under controlled conditions, so particle size, shape, toughness, and purity can be tuned. This leads to predictable wear patterns, higher thermal stability, and more consistent performance at high speed, especially in tough materials like reinforced concrete, granite, and ceramics.
Q3: What exactly are diamond segments made of?
Diamond segments are typically a mixture of synthetic diamond grit, metal powders (such as bronze, copper, cobalt, or iron alloys), and additives like graphite, carbides, or borides. These are pressed and sintered into dense blocks that gradually wear to expose new diamond edges.
Q4: How are diamond saw blades manufactured?
Most construction blades use sintered segments that are laser-welded or brazed to a steel core. Specialist blades may use electroplated or vacuum-brazed technology, where diamonds are bonded directly to the core in a single layer. Each method has specific strengths in terms of speed, kerf thickness, and durability.
Q5: Do synthetic diamond blades last longer than blades with natural industrial diamonds?
Yes, in most cases. Because synthetic diamonds are more uniform, designers can optimize grit size, concentration, and bond system to achieve longer, more predictable life. Natural diamond variability makes that kind of precise engineering harder.
Q6: Are synthetic diamonds environmentally friendly?
Lab-grown diamonds avoid the land disturbance, water use, and social issues associated with large-scale mining, which is a major environmental advantage. Their overall footprint depends on the electricity used in HPHT/CVD reactors, so using cleaner energy makes them significantly more sustainable.
Q7: Which industries rely most on synthetic diamond saw blades?
Key sectors include construction and infrastructure (concrete and asphalt cutting), stone processing (granite, marble, engineered stone), demolition/rescue, and fabrication of engineered materials. Beyond blades, synthetic diamonds are critical in aerospace, automotive, and electronics machining.
Q8: If nearly all blades use synthetic diamonds, does diamond quality still matter?
Absolutely. "Synthetic" just describes the origin. Within that category there are big differences in grit size, toughness, coatings, concentration, and bond pairing. High-quality blades from a specialized manufacturer can deliver dramatically better cutting speed and lifespan than low-end products that also happen to use synthetic diamond.
Q9: Can one diamond blade cut everything—concrete, steel, and tile?
Multi-material and rescue blades (often vacuum-brazed) can handle many materials, but there is always a trade-off. A blade optimized for porcelain edges won't be ideal for fast asphalt cutting, and vice versa. For safety, efficiency, and lowest cost per meter, it's best to select blade families tuned for your main materials and use "universal" blades only where necessary.
