Sintered vs. Vacuum Brazed Core Bits: Which One is Right for Your Job?

Views: 0     Author: Site Editor     Publish Time: 2025-07-25      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

When working on demanding drilling projects, choosing the right type of core bit is essential to ensure efficiency, cost-effectiveness, and precision. Two of the most widely used types of diamond core bits in construction and industrial settings are sintered and vacuum brazed core bits. Each serves a specific purpose and performs differently depending on the material being drilled and the project's requirements.

In this guide, we'll break down the differences between sintered and vacuum brazed core bits, helping you decide which one best suits your application.


What Are Diamond Core Bits?


Diamond core bits are specialized drilling tools embedded with diamond segments that allow them to cut through tough materials such as concrete, granite, marble, stone, and tile. These tools are popular in the construction, HVAC, and plumbing industries for their ability to deliver precise holes in dense materials.

Diamond bits come in several forms, but sintered and vacuum brazed are two of the most frequently used in both industrial and commercial settings.


Understanding Sintered Core Bits

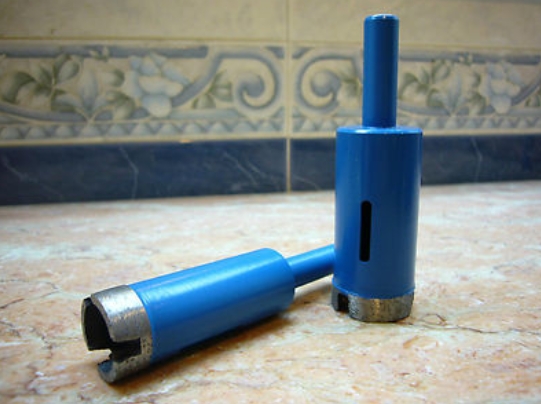

Sintered Core Bits


Sintered core bits are created through a process called sintering, where diamond particles are mixed into a metal matrix and fused together at high temperatures and pressure. This manufacturing method produces a strong, durable bit designed for heavy-duty and long-term use.


Benefits of Sintered Core Bits

• Extended Lifespan: As the bit wears down, new layers of diamonds are continually exposed, extending its cutting life significantly.

• High Cutting Volume: Ideal for repetitive and high-volume tasks. Sintered bits are built for endurance.

• Best for Hard Materials: Performs exceptionally well on tough surfaces like granite, reinforced concrete, and stone.

• Precision Drilling: Offers accurate cutting with minimal deviation over time.


Limitations

• Slower Cutting Speed: Compared to vacuum brazed bits, sintered bits may take longer to complete a cut.

• Higher Skill Requirement: For optimal use, these bits require proper cooling and experience.


Best Use Cases

• Core drilling in construction sites with thick concrete

• Plumbing or HVAC projects involving reinforced materials

• Professional fabrication or countertop installations


Understanding Vacuum Brazed Core Bits

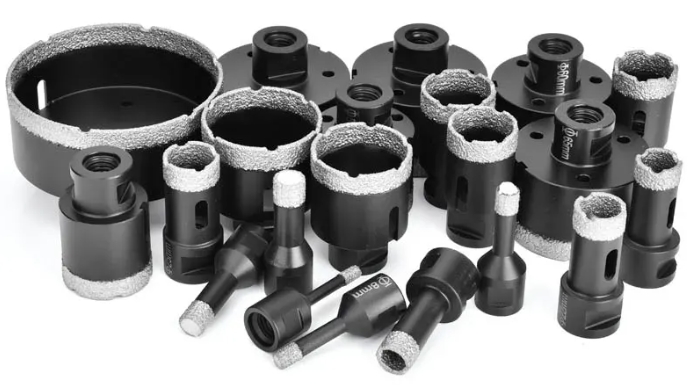

Vacuum Brazed Core Bits


Vacuum brazed core bits are made by bonding a single layer of diamond particles directly onto the bit's surface using a vacuum brazing process. This creates a highly exposed cutting surface that performs with speed and precision—particularly on softer materials.


Advantages of Vacuum Brazed Core Bits

• Fast Cutting Speed: Cuts more quickly than sintered bits, thanks to its fully exposed diamond edge.

• Clean Cuts with Less Chipping: Produces smoother finishes, making it ideal for decorative or precision work.

• Works on Softer Materials: Effective for marble, limestone, tiles, and even hard ceramics.

• Can Be Used Wet or Dry: Offers flexibility across different job sites.


Drawbacks

• Shorter Lifespan: Because there's only one layer of diamond, these bits wear out faster.

• Not Ideal for Very Hard Materials: Can degrade quickly when used on hard or abrasive materials.

• Higher Cost Per Hole: Frequent replacements may increase total cost over time.


Best Use Cases

• Tile installations

• Low-volume drilling in stone veneer or countertops

• Electrical or plumbing jobs that require clean, fast holes


Comparison


Feature Sintered Core Bit Vacuum Brazed Core Bit
Lifespan Longer; wears gradually Shorter; single diamond layer
Cutting Speed Moderate Fast
Material Suitability Hard materials (e.g., granite, concrete) Softer materials (e.g., tile, marble)
Cut Quality Clean and accurate Very smooth with less chipping
Cost Efficiency Better long-term value Higher replacement cost
Dry Use Typically wet only Wet or dry
Skill Requirement Higher (cooling and speed control) Lower (easy to use)


How to Choose the Right Core Bit


Your choice depends on multiple project-specific factors. Here are some key questions to consider:

• What material are you drilling?

Hard surfaces (granite, concrete): Go with sintered.

Softer surfaces (marble, tile): Vacuum brazed may be more efficient.

• How often will you use the bit?

High volume or long-term use: Sintered core bits are more cost-effective over time.

Occasional use or DIY projects: Vacuum brazed bits are easier to manage.

• Do you need clean, smooth edges?

For finishes with aesthetic value, vacuum brazed bits often yield better results.

• What's your budget?

While sintered bits have a higher upfront cost, their longer lifespan can reduce your cost per hole.


Combining Both Bit Types for Maximum Efficiency


In real-world applications, many contractors and fabricators use both types of core bits strategically. For instance:

• Start with a vacuum brazed bit for fast drilling in soft stone or ceramic.

• Switch to a sintered bit for high-volume drilling in reinforced concrete.

This hybrid approach lets you optimize both performance and budget.


Pro Tips for Using Diamond Core Bits


• Always Use Proper Cooling – Regardless of bit type, using water or coolant extends tool life and ensures smoother drilling.

• Secure the Material – Minimize vibration to improve accuracy and prolong the bit's life.

• Monitor RPMs – Each bit type has an optimal drilling speed. Going too fast can burn out vacuum brazed bits, while going too slow can reduce efficiency.

• Inspect Regularly – Check for wear, diamond exposure, and matrix erosion. Replace when the bit stops cutting effectively.

• Let the Bit Do the Work – Avoid forcing the bit. Apply steady pressure and let the diamonds grind through the material.


Applications in the Field


Professionals across various sectors rely on both sintered and vacuum brazed bits. For example:

• Contractors use sintered bits when core drilling HVAC ductwork or plumbing lines through concrete slabs.

• Stone fabricators often reach for vacuum brazed bits for rapid cutting during countertop installations.

• Electricians prefer vacuum brazed bits for precise holes in tile walls and lighter substrates.

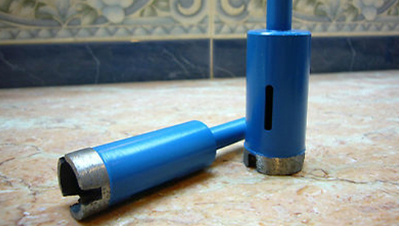

Recommended Product: Senmine Tile Core Bits


If you're looking for durable, precision-engineered core bits, Senmine's tile core bits offer an excellent combination of performance and value. Designed for tile and light stone applications, these bits are ideal for contractors who demand speed, smooth cuts, and minimal chipping.


Related Reading


To explore more about drilling best practices and tools:

• How to Drill Holes in Granite: A Step-by-Step Guide

• How to Drill Through Reinforced Concrete | Tools & Tips Guide

• What Are Diamond Core Drill Bits and Where to Use Them


Final Thoughts


Choosing between sintered and vacuum brazed core bits ultimately comes down to your material, project scope, and long-term needs. By understanding the core differences in performance, lifespan, and application, you can make a well-informed decision that leads to better efficiency, cost savings, and a smoother work process.

Whether you're an experienced contractor or a tools distributor advising your customers, having the right knowledge at your fingertips helps ensure you choose the correct bit every time.
