Diamond core drill bits are essential tools for accurate and efficient drilling in concrete, masonry, and other hard materials. For manufacturers and contractors, recognizing common wear patterns and implementing effective solutions is crucial to extending the lifespan of these high-performance tools. This guide delves into key wear patterns, their causes, and actionable solutions, with a focus on concrete diamond core drill bits. To sharpen your core drill bit – to deglaze it – you need to raise the weight on your bit while reducing the water flow. When your cut begins to improve, the bit has successfully sharpened.

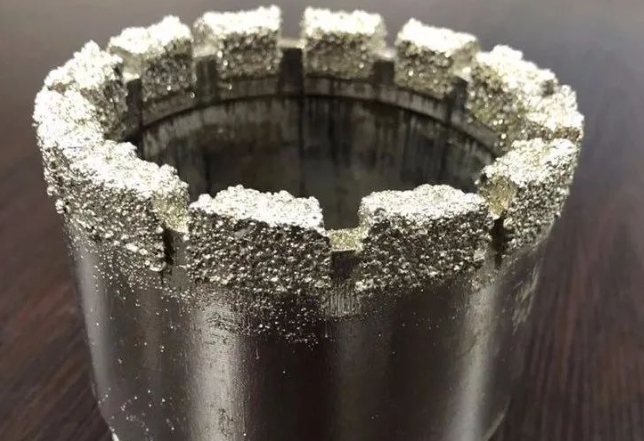

In optimal drilling conditions, both the bond and diamond particles wear uniformly, maintaining cutting efficiency throughout the lifespan of the diamond core drill bit. This balanced wear ensures consistent performance when drilling concrete, granite, and other dense materials.

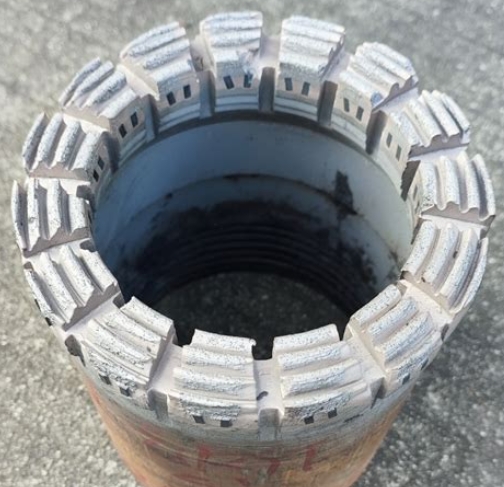

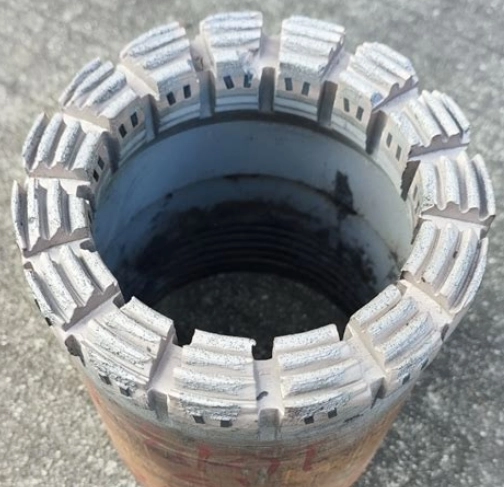

Premature diamond exposure occurs when the bond wears away too quickly, leaving diamond particles exposed before they are fully utilized. This reduces the lifespan of the diamond core drill bit and can lead to uneven cutting.
Causes:
• Excessive drilling pressure relative to the RPM.
• Inadequate water flow, causing overheating.
• Matrix hardness too low for abrasive materials like reinforced concrete.
Solutions:
• Adjust RPM and reduce drilling pressure to avoid excessive wear.
• Increase water flow to enhance cooling and prevent diamond core drill bit overheating.
• Switch to a harder bond diamond core drill for aggressive surfaces.
Burning out occurs when the bond melts due to excessive heat, sealing off water channels and hindering cooling efficiency. This is common in concrete diamond core drilling when water flow is insufficient.
Causes:
• Water leakage or insufficient water flow.
• Poor water circulation, leading to heat buildup.
Solutions:
• Increase water flow to maintain optimal cooling during drilling.
• Inspect mud pumps and drill rods for leaks and repair as necessary.
• Check inner tube length and adjust to prevent overheating.

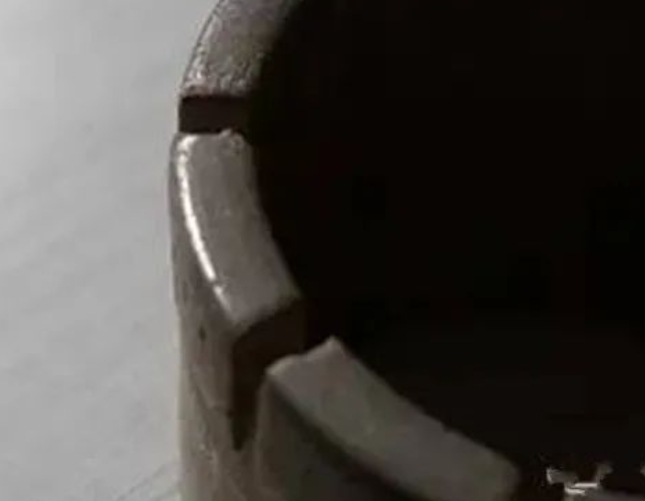

Glazing happens when diamond particles become smooth and lose their cutting edge, resulting in reduced cutting efficiency. This issue is prevalent when drilling hard, dense materials like granite or concrete.
Causes:
• Low drilling pressure, causing inadequate friction.
• Excessive water flow, reducing contact between the drill and the material.
• Matrix too hard for the material being drilled.
Solutions:
• Sharpen the diamond core drill by running it through abrasive material.
• Decrease water flow to increase friction and restore cutting capacity.
• Opt for a softer bond diamond core drill bit for less abrasive materials.
Internal diameter wear is characterized by abrasion inside the bit, leading to a reduction in core quality and increased risk of jamming.
Causes:
• Excessive drilling pressure.
• Fragmented formations or loose debris in the borehole.
• Soft bond prone to rapid wear.
Solutions:
• Increase RPM and reduce drilling pressure to prevent aggressive wear.
• Flush debris with sufficient water flow to prevent clogging.
• Adjust inner tube length for optimal core retrieval and reduce internal friction.
External diameter wear appears as abrasion along the outer edges of the diamond core drill bit, often due to vibration or excessive speed.
Causes:
• High vibration levels, particularly in handheld drilling.
• Excessive RPM, increasing friction.
• Insufficient water flow, causing overheating.
Solutions:
• Increase water flow to cool the diamond drill core effectively.
• Reduce RPM to mitigate vibration and control friction.
• Implement drilling fluid additives to stabilize the borehole.
Inside wear occurs when the inner segments of the diamond core drill bit degrade faster than the outer segments, leading to uneven wear patterns.
Causes:
• Excessive pressure relative to RPM.
• Core blockage within the inner tube.
• Fragmented formations increasing abrasive contact.
Solutions:
• Reduce drilling pressure and increase RPM to balance wear.
• Clear blockages and inspect inner tube length.
• Utilize drilling fluid additives to stabilize formations and minimize debris buildup.
Outside wear refers to faster wear on the outer segments compared to the inner segments, often due to insufficient water flow or borehole expansion.
Causes:
• Inadequate water flow, leading to insufficient cooling.
• Leaks in drill rods reducing water pressure.
• Borehole collapse, causing increased friction.
Solutions:
• Increase water flow to maintain cooling efficiency.
• Inspect and repair leaks in the drill rods to maintain consistent pressure.
• Adjust reamer size to prevent borehole expansion and maintain optimal drilling path.
Diamond core bits must maintain optimal diamond exposure to perform effectively. When the controlled erosion cycle of the bit's segments is disrupted, the bit can become dull or glazed, significantly impacting drilling efficiency. If the coring feed rate slows dramatically or the bit stops cutting, it may indicate glazing. Here's how to resolve it:
• Reduce water flow until the discharge becomes visibly muddy. Continue using minimal water until the bit begins to penetrate more effectively.
• If the bit remains glazed, remove it from the hole. Pour a 1/4-inch layer of coarse silica sand into the kerf.
• Resume coring with minimal water and a slightly lower RPM. Continue for 3-5 minutes to restore diamond exposure.
• Gradually increase water flow to flush out the sand and debris.
• Repeat as needed until the diamond segments are re-exposed and cutting efficiently.
To maximize the lifespan and performance of diamond core drill bits:
• Choose the appropriate bond hardness based on the target material, such as concrete, granite, or reinforced structures.
• Adjust RPM and drilling pressure to optimize friction and prevent glazing.
• Ensure consistent water flow to maintain cooling and prevent bond degradation.
• Conduct routine inspections to detect early wear patterns and implement corrective actions promptly.
Ready to take your drilling projects to the next level? Our premium diamond core drill bits are engineered for precision, durability, and exceptional performance across concrete, masonry, and other demanding materials. If you're wondering where to buy diamond core drill bits that deliver consistent results and long-lasting reliability, look no further. Explore our extensive range of diamond core drilling solutions designed to elevate your operations. Contact us now to discover how our products can meet your specific drilling needs.
Recommended products:
M22 Wet/Dry Diamond Core Drill Bit
1-1/4" UNC Dry Concrete Core Drill Bit
3-Part Wet Diamond Core Drill Bit
Concrete Drill Bit for Wet Drilling
More read:
What Are Diamond Core Drill Bits And Where To Use Them
How to Choose the Right Diamond Core Drill Bit
Application Scenarios of Core Drill And Its Advantages
Diamond Core Drill vs TCT Core Drill: Which is Best for You?
Core Drilling Essentials – A Comprehensive Practical Guide
1. How can I tell if my diamond core drill bit is glazed?
If the bit's cutting performance drops significantly, the surface appears smooth, and the diamond particles are not protruding, it is likely glazed. A visual inspection will reveal a shiny, polished surface rather than a rough, gritty texture.
2. Can a diamond core drill bit be reused after experiencing glazing?
Yes, a glazed diamond core drill bit can often be restored by following the sharpening process, which involves reducing water flow, using abrasive material, and gradually increasing water flow to expose fresh diamond particles.
3. What causes uneven wear in diamond core drill bits?
Uneven wear is typically caused by improper drilling pressure, inconsistent water flow, or drilling through highly abrasive or fragmented materials. Adjusting drilling parameters and maintaining optimal cooling can help prevent this.
4. How often should I inspect my diamond core drill bit for wear?
Regular inspections after each major drilling project are recommended. Look for signs of glazing, segment loss, or uneven wear to address potential issues early.
