Diamond saw blades come in segmented, turbo, and continuous rim types, each optimized for different materials and cutting needs: segmented for hard materials and rough cuts, turbo for a balance of speed and smoothness, and continuous rim for precise, clean cuts on delicate materials.
Diamond blades are essential tools for cutting tough materials like stone, ceramic, and concrete. They are specifically designed to grind through hard surfaces using synthetic diamond particles. Choosing the right blade for a particular task ensures efficient work and enhances durability.
• Segmented Rim Blades – Ideal for dry-cutting hard materials such as masonry and concrete. These blades effectively dissipate heat but may produce rough cuts and generate significant noise.
• Turbo Rim Blades – A balanced option that offers both aggressive cutting and precision. Suitable for wet and dry cutting, though they tend to wear out quickly when used on extremely hard materials.
• Continuous Rim Blades – Best for achieving fine, smooth cuts in delicate materials like tile and marble. These blades require water cooling during operation and have a relatively short lifespan.
Despite being called "cutting" tools, diamond blades actually grind through materials rather than slicing them. They are constructed using synthetic diamond particles bonded with powdered metals and reinforced by a strong steel core, making them exceptionally durable for industrial and construction applications.
In this article, we will explore the different types of diamond blades and provide practical tips on how to use each one effectively.
For grinding non-metallic, abrasive materials such as concrete, stone, ceramics, and other tough surfaces, diamond is the optimal choice. However, it is less effective than CBN when cutting steel and other metals. Whether you’re sawing concrete, drilling through porcelain, or making precise cuts in fiberglass, using a premium diamond blade is essential.
Diamond blades offer numerous advantages over traditional abrasive wheels and standard cutting blades, which often struggle with precision cutting. Selecting the right diamond blade for stone cutting is just as crucial as choosing the appropriate saw. When properly matched to the task, diamond blades deliver fast cutting speeds and extended service life. However, using an incorrect blade or operating a saw at excessive speeds can shorten blade lifespan and increase costs.
Diamond blades are available in various sizes and performance levels, but selecting the right one can be challenging. Prices vary significantly, sometimes reaching thousands of dollars. While opting for a cheaper blade might be tempting, investing in a high-performance, long-lasting blade is often the smarter choice.
Several factors influence blade lifespan, including:
• Saw speed
• Concrete properties
• Blade quality
Understanding how diamond blades function and the key factors affecting their longevity and performance can help maximize efficiency and cost-effectiveness.
Here are three types of diamond saw blades and their respective applications.
Overheating is a significant concern when using diamond saw blades. Choosing the right blade for your specific needs is essential. If water is not available for cooling, a segmented rim blade is a practical option.

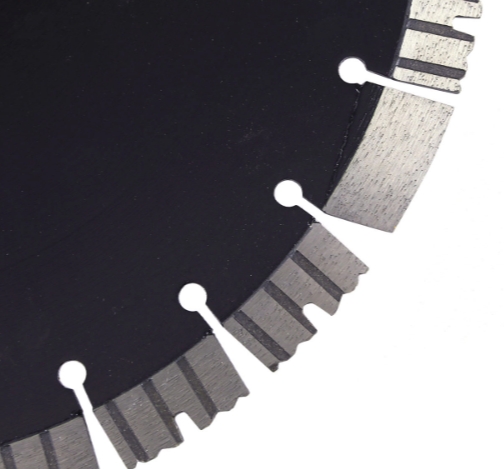

This type of blade typically features deep grooves between 10 to 14 segments. As mentioned earlier, it is a suitable choice in dry-cutting conditions since the gaps in the rim facilitate effective heat dissipation.
Improper use can lead to excessive heat buildup, potentially damaging the blade. Segmented rim blades are commonly used for grinding materials like bricks and concrete.
Advantages of Segmented Rim Blades：
Versatility: Segmented rim blades are highly versatile tools, capable of cutting stone, large concrete slabs, and masonry blocks. They are ideal for a wide range of applications, including demolition, construction, and remodeling projects.
Efficient Heat Dissipation: These blades are designed to disperse heat effectively, preventing materials from overheating and sustaining damage. Their specialized design enhances heat reduction and offers better protection when cutting through tough materials.
Ideal for Heavy-Duty Tasks: With their aggressive cutting action, segmented rim blades excel in heavy-duty applications. They are particularly well-suited for demanding jobs such as construction and demolition, offering exceptional cutting power that allows for quick material removal, even when working with reinforced concrete.
Dry Cutting Capability: Segmented rim blades are specifically designed for dry cutting without the need for water or coolant. Their unique design allows for increased airflow during operation, helping to minimize overheating and material damage. This makes them an excellent choice for applications where waterless cutting is required.
Disadvantages of Segmented Rim Blades：
Less Precision: Segmented blades are not ideal for cutting softer materials or tasks that require high precision. While they are known for their aggressive cutting ability on hard materials, this can lead to rough or imprecise cuts, making them unsuitable for detailed work.
Faster Wear: Segmented rim blades tend to wear down more quickly than other types of blades. Their aggressive cutting action leads to faster wear, and excessive pressure during use generates heat and friction, further accelerating the blade's deterioration.
Noisy Operation: Segmented blades tend to be noisier than other blades due to their faster cutting speed. This increased noise level can be disruptive and potentially hazardous to both the operator and the surrounding environment.

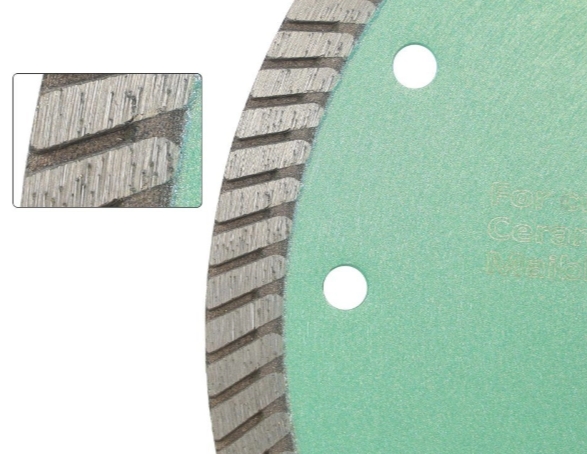

The turbo rim blade shares several characteristics with the segmented rim blade, despite their different appearances. The basic structure of both blades is quite similar, with the turbo rim blade featuring relief holes and segmentation to enhance heat transfer.
One key distinction between the turbo rim and segmented rim blades is how they handle heat. The turbo rim performs well in both wet and dry conditions, thanks to its design. While the grooves in the segmented rim blade aid in heat distribution, the additional holes in the turbo rim further help maintain optimal performance. This combination ensures reliable operation in a variety of environments.
Like the segmented rim blade, the turbo rim is effective at cutting through materials like brick and concrete. However, it has the added advantage of cutting through thicker limestone, which the segmented rim may struggle with. Additionally, the turbo rim provides a cleaner, more precise cut, without the breakage often seen in segmented rim blades.
Advantages of Turbo Rim Blades：
Heat Dissipation: Turbo rim blades have excellent heat-dissipating capabilities, similar to segmented blades. The gaps in the rim allow heat to transfer efficiently, reducing the risk of overheating and minimizing potential damage.
Versatility: Like segmented blades, turbo rim blades are highly adaptable. They can be used for a wide range of applications, including cutting tough materials such as concrete and masonry, making them a versatile choice for various tasks.
Balanced Performance: Thanks to their segmented structure and turbo slots, turbo rim blades deliver balanced performance. This makes them well-suited for both heavy-duty tasks and more precise detailing work.
Reduced Noise and Vibration: Turbo rim blades produce less noise and vibration compared to traditional blades. Their unique turbo slot design helps minimize vibrations, offering the operator better control and enhancing cutting accuracy.
Disadvantages of Turbo Rim Blades：
Fast Wear: When cutting hard materials, the holes in the turbo blade rim can increase the surface area, leading to faster wear. Additionally, improper handling of the blade can cause damage and further accelerate its deterioration.
Not Ideal for Aggressive Cutting: Despite some similarities, turbo rim blades differ from segmented rim blades in terms of cutting performance. Turbo rim blades are not designed for heavy-duty or aggressive cutting tasks. Their turbo slot design allows for a balance between aggressive and precise cutting, making them more suitable for surface smoothing and cutting through less demanding materials.

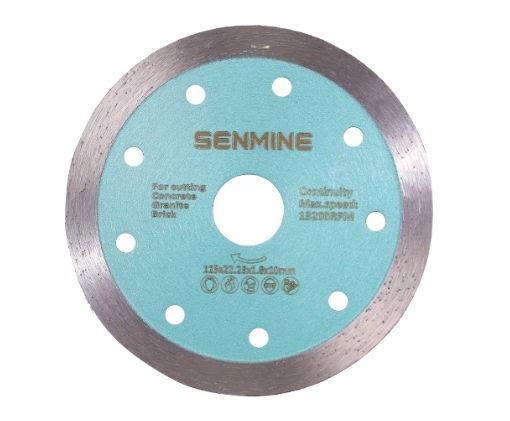

This type of blade is often called a "wet cut blade" because it lacks built-in heat distribution or fan-like features to circulate air over the blade. Typically, these blades are flat and simple, with minimal features. They are designed to be used with water flowing over them, which helps wash away dust, keeping the blade and surrounding equipment clean while extending their lifespan.
Continuous rim blades are ideal for cutting materials like marble, granite, porcelain tile, and ceramic tile, providing a smooth, clean edge. However, they are among the slowest cutting blades available for these types of materials.
Advantages of Continuous Rim Blades：
Quiet Operation: One of the key reasons continuous rim blades are so popular is their silent operation. The continuous rim design, which eliminates gaps between segments, allows the blade to cut with minimal noise.
Precise Finish: Continuous rim blades are known for delivering a smooth and accurate finish, making them ideal for cutting delicate and fine materials such as marble.
Disadvantages of Continuous Rim Blades：
Not Ideal for Hard Materials: Continuous rim blades excel at cutting softer materials, providing a smooth finish thanks to their design. However, they are not the best choice for heavy-duty tasks or cutting through hard materials, where other blade types would perform better.
Shorter Lifespan: Compared to segmented blades, continuous rim blades generally have a shorter lifespan. They are more prone to damage when used on hard materials, leading to faster wear and reduced durability.
Understanding the differences between segmented, turbo rim, and continuous rim diamond blades is essential for achieving the best cutting results across various materials such as concrete, tile, stone, and masonry. Each blade type offers specific benefits based on cooling requirements, cut precision, and material hardness. By selecting the right diamond saw blade for your application, you can enhance efficiency, extend blade life, and ensure clean, accurate cuts. Whether you're working on a construction site or a tile installation project, using the correct blade can significantly improve performance and reduce overall tool wear.
For more tips on choosing the best diamond blade for your project or material type, explore our complete diamond segments guide or contact us for personalized advice.
Q1: How can I extend the life of my diamond blade during dry cutting?
A: To extend blade life when dry cutting, make shallow passes instead of deep cuts, allow the blade to cool between uses, and avoid applying excessive pressure. This helps reduce overheating and segment wear, especially for segmented and turbo blades.
Q2: Why is water essential when using continuous rim blades?
A: Water acts as both a coolant and a lubricant. It reduces friction, prevents thermal damage to the blade and material, and helps clear debris during fine cuts—critical for maintaining smooth results in tile or marble cutting.
Q3: What causes chipping on the edges of ceramic tiles during cutting?
A: Chipping is often caused by using the wrong blade type (e.g., segmented or turbo blades), cutting too fast, or working without water. For clean tile edges, use a continuous rim blade with steady speed and sufficient water flow.
Q4: Why do segmented blades perform poorly on delicate materials?
A: Segmented blades have wide, spaced teeth designed for fast, aggressive cutting. This design causes vibrations and rough cuts, making them unsuitable for fragile materials like porcelain or glass that require precision and edge integrity.
Q5: How do I choose between a turbo and segmented blade for concrete cutting?
A: Use a segmented blade for fast, aggressive dry cuts in large-scale demolition or rough concrete work. Opt for a turbo blade when you need cleaner results and are willing to use water or slower speeds for improved precision.
Q6: What happens if I use a continuous rim blade for dry cutting?
A: Using a continuous rim blade without water can cause overheating, segment glazing (loss of cutting ability), or even warping. These blades lack airflow channels, making water cooling essential for performance and safety.
Q7: Can I use the same diamond blade for both porcelain and concrete?
A: It’s not recommended. Porcelain requires smooth, chip-free cutting with a continuous rim blade, while concrete needs more aggressive cutting with a segmented or turbo blade. Switching between materials can dull the blade unevenly and compromise cut quality.
Q8: How do I safely change a diamond saw blade?
A: First, disconnect the power source (unplug the saw or remove the battery). Use the appropriate wrench to loosen the arbor nut, following the manufacturer's direction (some are reverse-threaded). Carefully remove the old blade, clean the arbor area, and install the new diamond blade with the arrow pointing in the correct cutting direction. Tighten the nut securely, then check for proper alignment before restarting the saw.
