MQ0005
Senmine
| Availability: | |
|---|---|
| Quantity: | |
The MQ0005 is a professional-grade diamond saw blade designed for cutting natural and engineered stone materials. This series offers two blade configurations:
•Segmented Blade – For fast, aggressive cutting and effective debris removal.

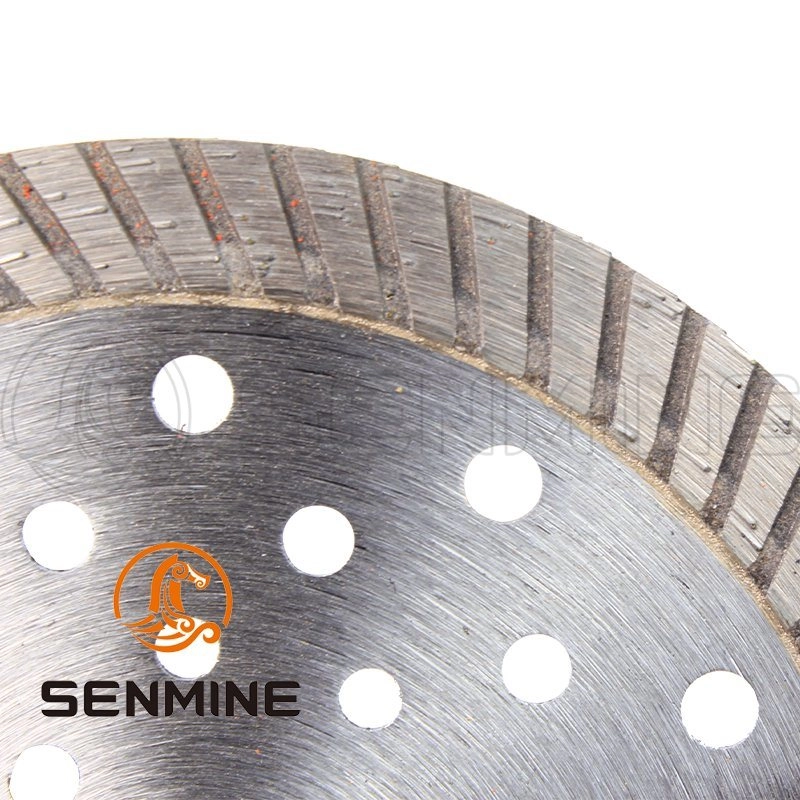

•Turbo Blade – For smoother finishes with reduced edge chipping, thanks to its continuous serrated rim.

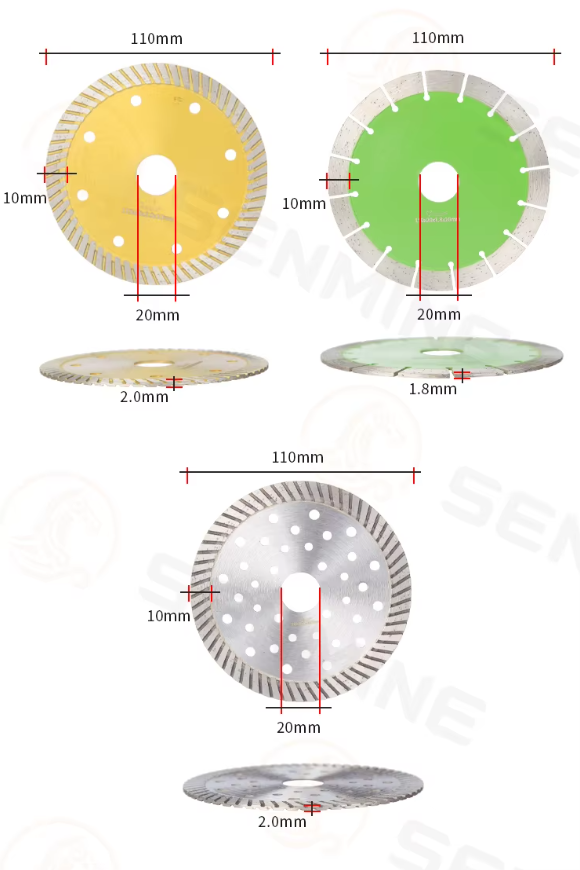

Both types are available with a 110mm outer diameter, a 20mm bore, and 10mm segment height. You can choose between 1.8mm or 2.0mm thickness to suit your material hardness and project scale.
| Parameter | Value |
|---|---|
| Model | MQ0005 |
| Blade Types Available | Segmented / Turbo Diamond Blade |
| Outer Diameter | 110 mm (4.3 inches) |
| Inner Bore Diameter | 20 mm (0.79 inches) |
| Segment Height | 10 mm |
| Segment Thickness | 1.8 mm / 2.0 mm |
| Application Materials | Granite, Marble, Stone |
| Mounting Compatibility | Angle Grinders, Tile Saws, Hand Saws |
| Blade Type | Features | Best For |
|---|---|---|
| Segmented | Fast debris removal, rugged cuts | Rough cutting, high output work |
| Turbo | Continuous rim, smoother edges, reduced chipping | Decorative stone, edge finishing |
User Benefits:
•Reduced edge cracking when cutting delicate marble (Turbo)
•Enhanced cooling and chip clearance in dry applications (Segmented)
•Customizable thickness ensures balance between precision and durability
Ideal for:
•Granite & Marble Processing Plants – Precision slab shaping and edge trimming
•Countertop Fabricators – Cutting detailed shapes without sacrificing blade life
•Masonry Installers – On-site dry or wet cutting in high-precision environments
Solve These Common Frustrations:
•Blade wobble or burn marks? Turbo rim provides smoother cuts with better thermal control.
•Segment loss in dry applications? Our reinforced segmented version handles intense heat and vibration.
• What's the difference between Turbo and Segmented blades?
Turbo blades have a continuous serrated rim that delivers smoother, cleaner cuts with less edge damage. Segmented blades remove material faster and are better for aggressive, dry cutting.
• Which thickness should I choose?
1.8mm offers finer precision, especially on marble. 2.0mm is recommended for longer blade life during heavier tasks.
• Can these blades be used with water?
Yes, both types can be used for wet or dry cutting, although wet use will prolong life and improve cut quality.
• Are OEM/ODM versions available?
Absolutely — we offer custom logo printing, private labeling, and tailored packaging for bulk orders.
✔ Turbo & Segmented types meet different project requirements
✔ 10mm tall segments extend lifespan
✔ Manufactured under strict ISO-certified QC
✔ 12+ years in diamond blade production with export to 60+ countries
✔ Minimum order quantity: 10 pcs per blade type
Looking to purchase in bulk or need a custom solution?
Contact Us now for pricing, specifications, or technical consultation.
