Diamond core drill bit segments
Our segments are known for their excellent sharpness and high efficiency during the drilling process. They have a long lifespan and are designed to provide a smooth cutting experience, resulting in a flat surface and uniform size.
Core drill bits segment Advantage:
1)Different shapes available.
2)Various diameters available.
3)Easy start segments
4)Diamond segment formula adjustable.
5)Long working life and high-cutting speeds
6)Suitable for both hand-held and rig-mounted machines
7)Wide application: for hard reinforced concrete/concrete/asphalt/pavers/granite/rock/precast concrete/core filled
blockwork/limestone/bricks etc.
Attention:

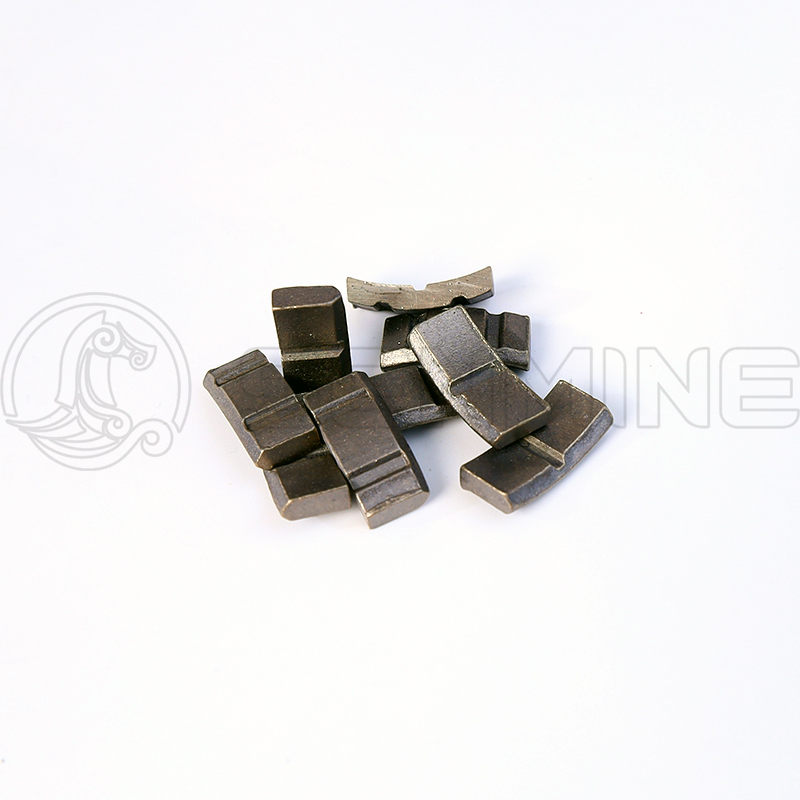

Pointed turbine teeth
roof top
turbo
turbo segments
great wall-turbo
dottde

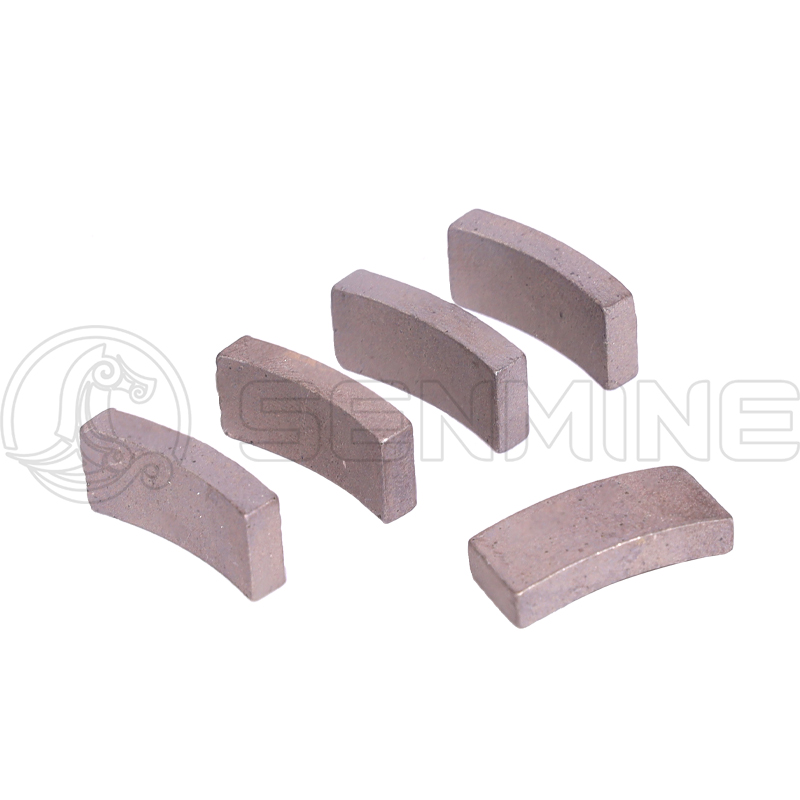

flat tooth

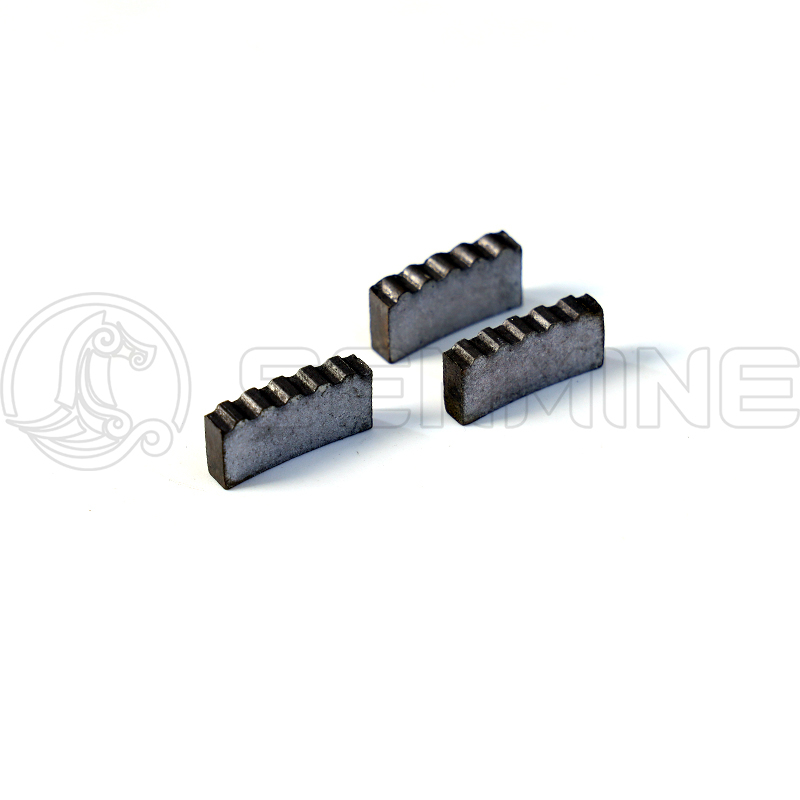

gear
gridded tooth

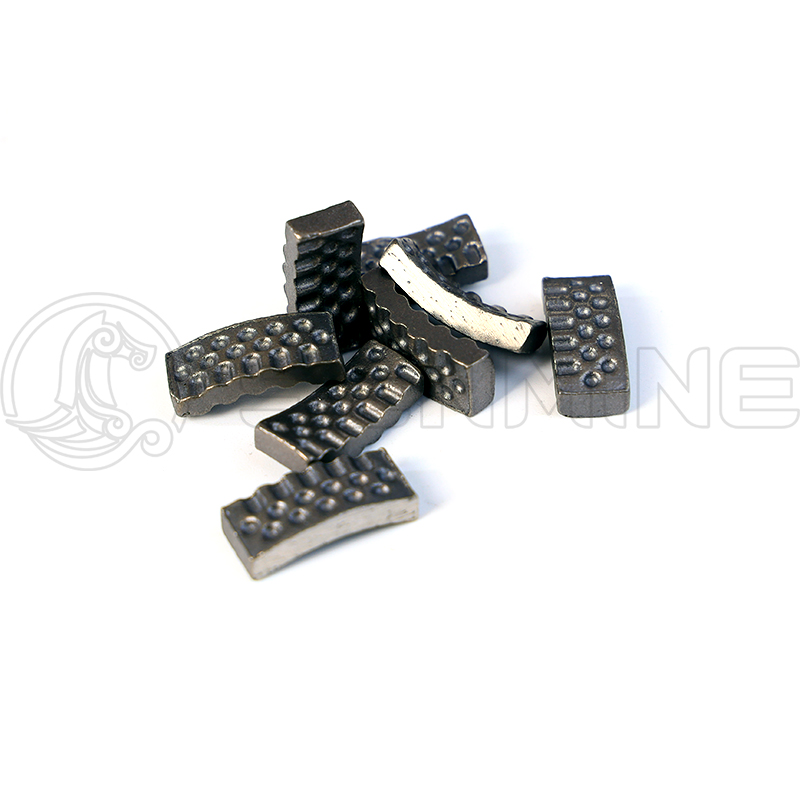

honey comb
| Diameters (mm) | Description | Dimensions | Segment number |
| 48-52mm | Processing materials：reinforced concrete Connection：1-1/4" UNC； Barrel：450mm； | 22*4*11 | 5 |
| 56-76mm | 24*4*11 | 6 | |
| 82-96mm | 24*4*11 | 6 | |
| 102-127mm | 24*4*11 | 7 | |
| 132-190mm | 24*4.5*11 | 8 | |
| 200-300mm | 24*4.5*11 | 9 | |
| From 300mm | 24*4.5*11 | 9 |
Using a standard box to pack the diamond segments, about 220 pcs/Box.
For more information, please feel free to contact us directly!
